0 to 100 V Digital DC VOLTMETER
0 to 100 V Digital DC ভোল্টমিটার

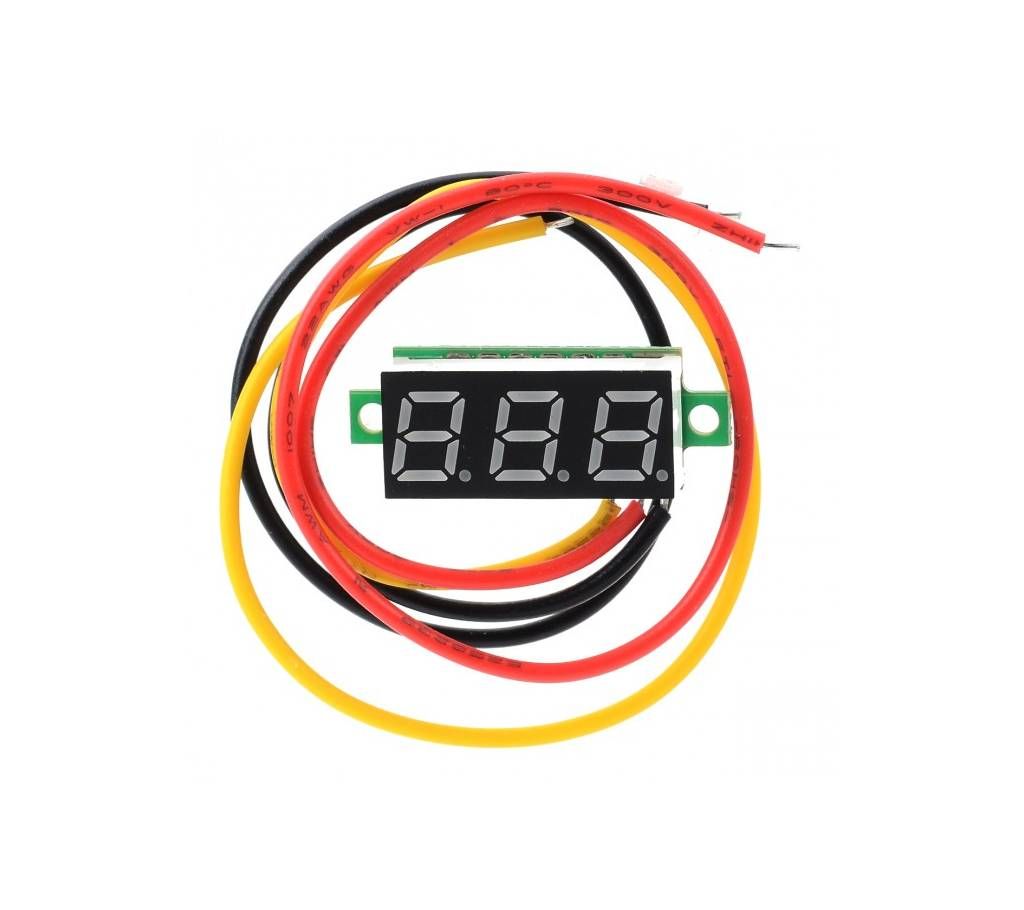

This is 0 to 100 V 0.28-inch Digital Voltage Tester DC VOLTMETER Small in size and light in weight, quite easy and convenient to carry out. Its small size which is only 0.28″ with bright and sharp blue light visible LED display, easy to read even in dim light and low operating voltage. With reversed connection protection, it will not burn even when wires are connected reversely by mistake.
The range of measurement of DC voltage varies from DC0-100V, 2 and 3-wire products Universal, to break the routine voltmeter, is the latest design, can work directly in 5V, 9V, 12V, 24V and other circuits, without regulation. With three wiring, easy access to car /battery car / motorcycle-car line, with reverse polarity protection, line reversal will not burn. For monitoring the battery voltage, battery voltage state to grasp, it can also be used for other products voltage measurement purposes.
2-power source (Red and Black) line with the highest input voltage cannot exceed 30V, otherwise, there is the risk of burnt.
Three-line voltage range 0-100V, but also can be used as second-line use in 40V voltage to within Technical parameters
Dimensions: 12 x 28 x 9 mm (LxWxH)
Weight: 5 gm
Cable Length: 20 cm
line working voltage: 4.0~40V (with reverse protection function)
2 line detection voltage: 0.0~40V
3 line working voltage: 4.0~40V (with reverse protection function)
3 line detection voltage: 0.0~100V
Working current: <20mA
Display mode: 0.28 “LED.
LED Color: Red
Low working voltage: +4.0V
Maximum working voltage: +40V
Working temperature: -10 ~ +65
Working humidity: 10 ~ 80% (no condensation)
