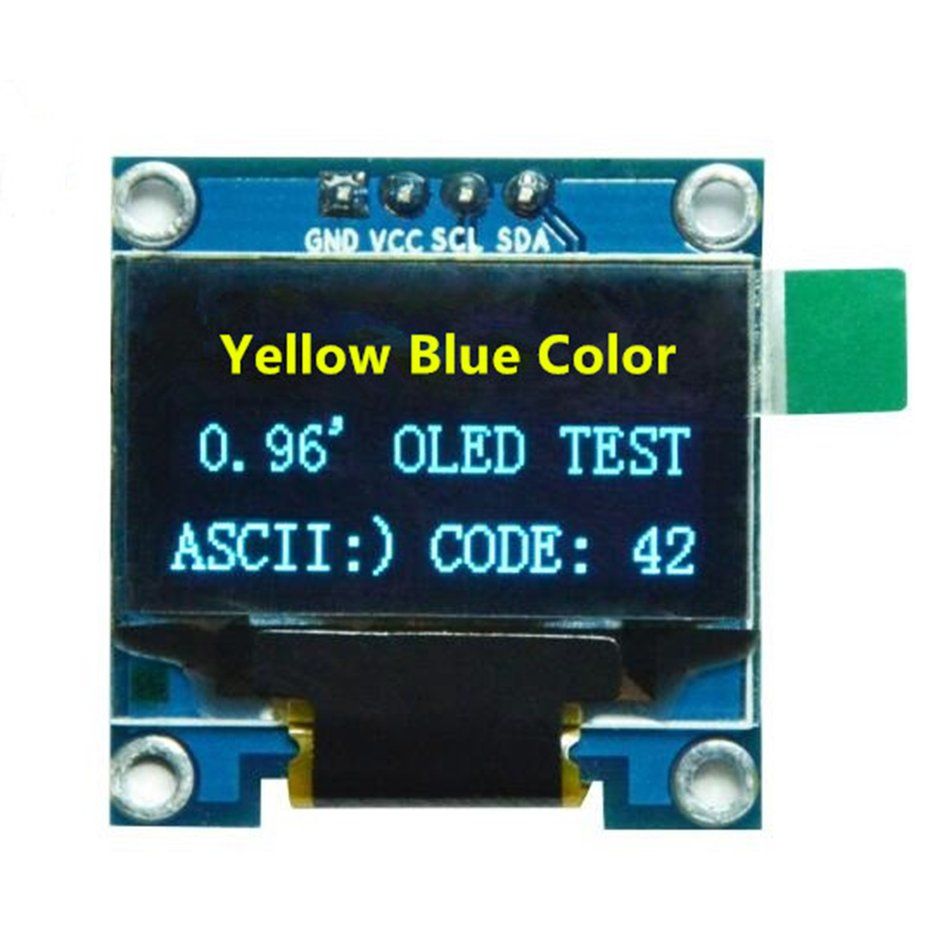

0.96-inch I2c IIC Serial Oled LCD LED Module 128X64 For Display Raspberry
- 128*64 LED display module for , supports many control chip.Fully compatible with , 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.Ultra-low power consumption: full screen lit 0.08W.Super high brightness and contrast are adjustable.With embedded driver/controller.Interface type is IIC.Pin Definition: GND, VCC ,SCL, Secure DigitalA.
- Pins: 4 pinsVoltage: 3V ~ 5V DCWorking Temperature: -30 ℃ ~ 70 ℃Character Colors: Blue(as pictures show)Drive Duty: 1/64 DutyHigh resolution: 128 * 64Panel Dimensions: 26.70* 19.26* 1.85mm/1.03*0.76*0.07 inch(approx)Active Area: 21.74* 11.2mm /0.86*0.44 inch(approx)Driver IC: SSecure Digital1306
