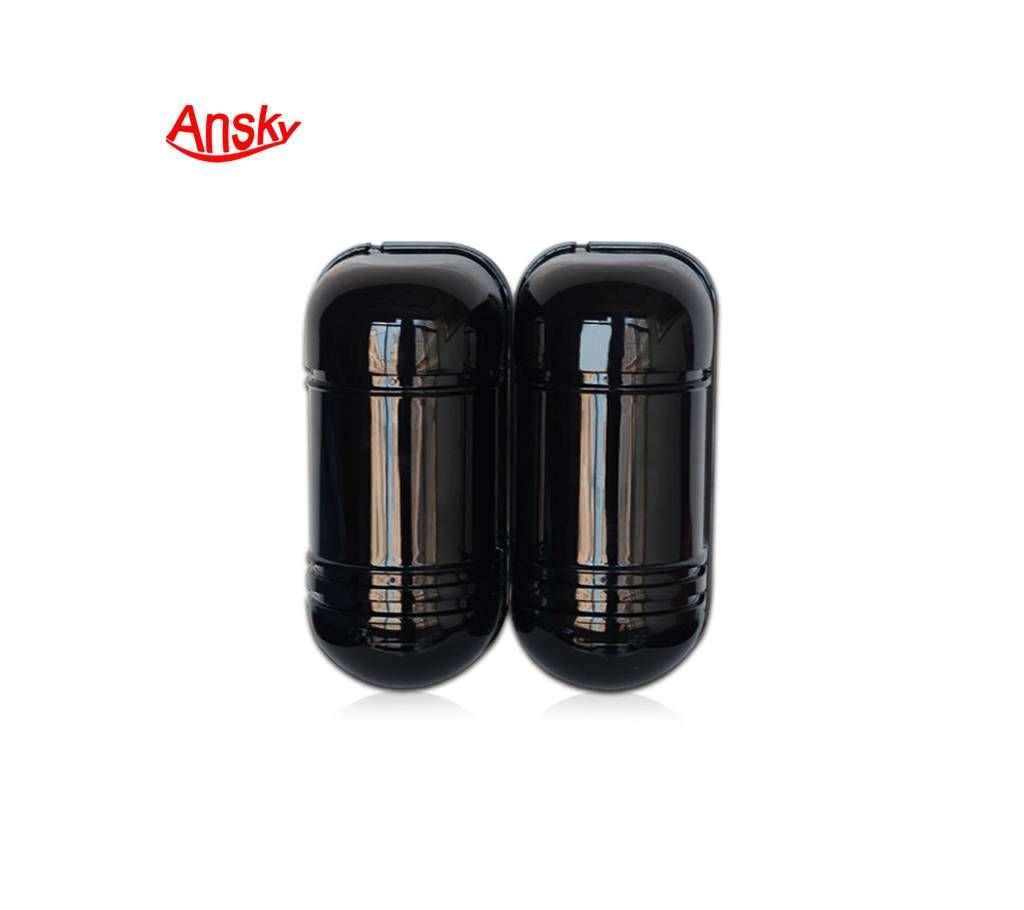

1 pair New photoelectric two-beam IR Sensor barrier detector, transmitter and receiver
1 pair New photoelectric two-beam IR সেন্সর ব্যারিয়ার ডিটেক্টর, ট্রান্সমিটার এন্ড রিসিভার
Features:
Dual-beam photoelectric IR infrared detector
Home and garden care
Sensors and motion sensors
Specifications:
Model: ABT-100
External distance: 100 m
Internal distance: 300 m
Beams: 2
Optical Source: Infrared digital pulse mode
Response speed: 50- 700 ms
Alarm: nc & No contact rating AV / DC 30 V / 0.5a
Alarm-Bus: mA bus according to the wave model
Input voltage: DC 13.8-24 V
Current: 65mA
Operating Temperature / Humidity: -25c-60c 5% -95%
Bark material: PC Resin tin metal
Re level control: 180 ± 90 degrees
Vertical adjustment: 20 ± 10 degrees
Output: nc contact rating AV / DC 24 V / 0.5ma Case
material: polycarbonate
Color: black
Net weight: 800 g Size: 170 x 78 x 73 mm
We also have a double beam model: ABT-80, abt-60, abt-30, and if you want these models, just leave us a message, or we'll send abt-100 by default.
