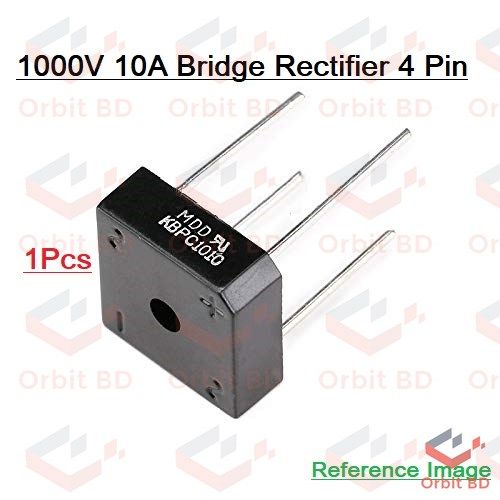

1000V 10A Bridge Rectifier 4 Pin
- Bridge Type Single Phase
- Peak Average Forward Current 10A
- Peak Reverse Repetitive Voltage 1000V
- Mounting Type Through Hole
- Package Type GBU
- Pin Count 4
- Configuration Single
- Peak Non-Repetitive Forward Surge Current 220A
- Maximum Operating Temperature +150 °C
- Minimum Operating Temperature -55 °C
- Peak Forward Voltage 1V
- Peak Reverse Current 500µA
- Length 22.3mm
- Dimensions 22.3 x 3.56 x 18.8mm
- Width 3.56mm
- Junction Capacitance 60pF
- Height 18.8mm
