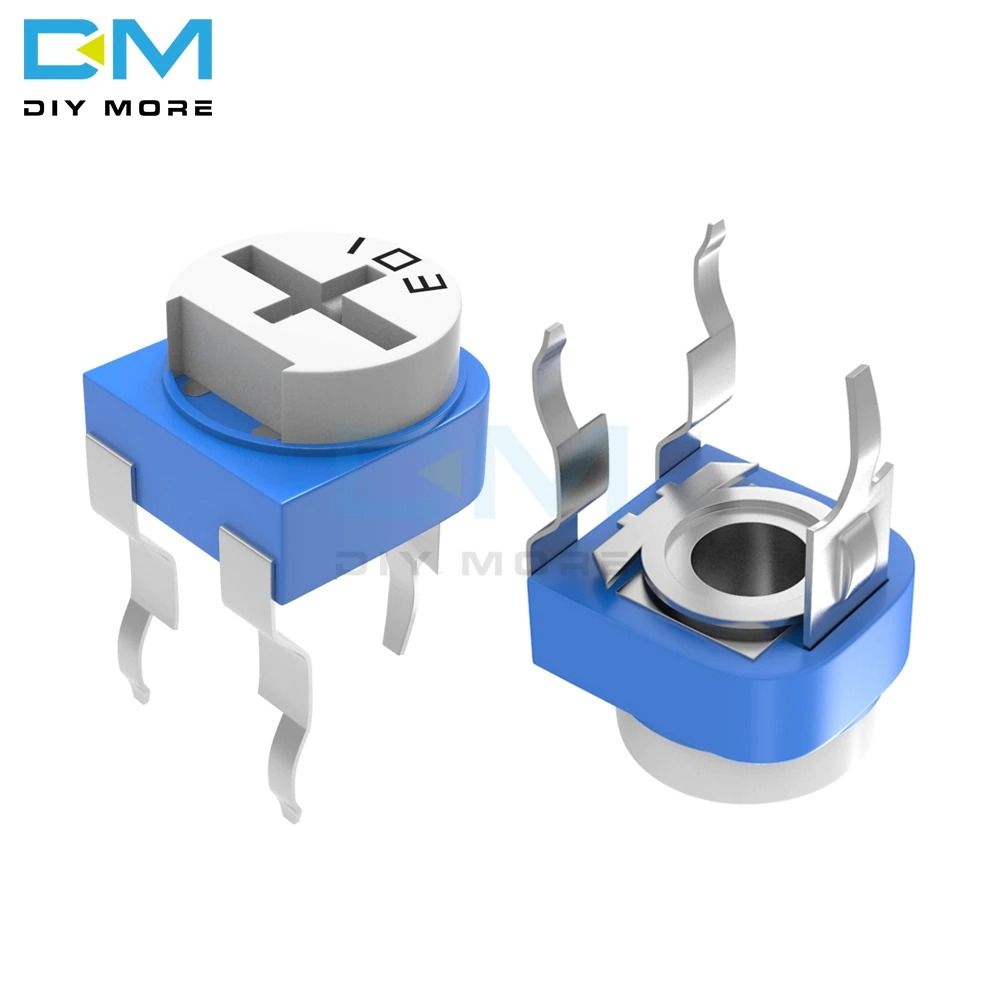

10PCS 100R 200R 500R 1K 2K 2.2K 3K 5K 10K 20K 50K 100K 500K 1M Ohm RM-065 RM065 Trimpot Trimmer Potentiometer Variable Resistor
- Model number: RM065 WH06-2
- Technology: Carbon Film Resistance
- range (Ohms): 100Ω, 200Ω, 500Ω, 1KΩ, 2KΩ, 2.2KΩ, 3KΩ, 3.3KΩ, 5KΩ, 10KΩ, 20KΩ, 50KΩ, 100KΩ, 200KΩ, 500KΩ, 1MΩ
- Resistance Tolerance: ± 30%
- Rotation angle: 210 ° ± 10 °
- Starting torque: 2-35mN.m
- Mechanical strength: resistance film can withstand 1kg pressure does not break
- Resistance change characteristics: B
- Maximum use voltage: 50V
- Rate Power: 0.1W
