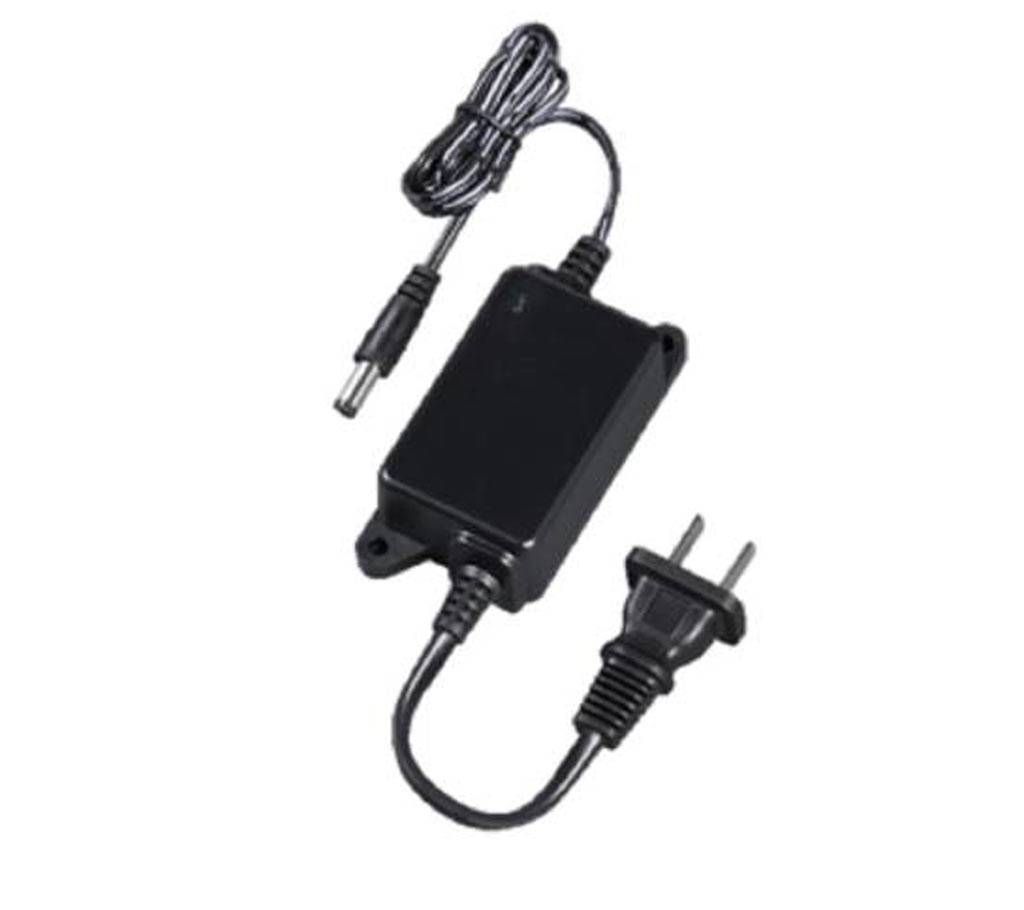

12V 1A Power Adapter PFM321
12V 1A পাওয়ার অ্যাডাপ্টার PFM321
PFM321
12V 1A Power Adapter
Easy installation
With indicator light working
Support -30℃~+70℃ wide-range temperature operation, and the full load efficiency of the power supply can be up to 100% at these temperatures
Accurate overcurrent, overvoltage protection
Model
DH-PFM321D-EN
DH-PFM321D-BS
DH-PFM321D-US (VI)
Electrical Specification
Input: 100~240V, 50/60Hz, 0.5A
Output: 12V (+7%, -3%) ---1A (2%)
Protection/Environmental
Protection
Surge protection, over temperature protection,
over current, voltage load protection
ESD: EN61000-4-2
+/-4kV Contact; +/-8kV Air
Surge: EN61000-4-5”
Combination Wave: Common Mode ±4KV (12 ohms);
Differential Mode ±2kV (2 ohms)
Working temperature
-30℃~+70℃(-22℉~+158℉)
Working humidity
<95% RH
Physical Properties
Weight
150g(0.33lb)
Dimension(LxWxH)
84mmx41mmx26mm(3.31”x1.61”x1.02”)
Installation mode
Plane installation
Color: Black
Input plug
2-pin Euro plug
3-pin British plug
2-pin North American plug
Outgoing cord
AC wire: 50cm(19.69”), DC wire: 80cm(31.5”)
DC plug
Φ5.5mmxΦ2.1mmx12mm(Φ0.22”xΦ0.08”x0.47mm)
Safety Standards
Certification
CE, FCC, UL-VI
