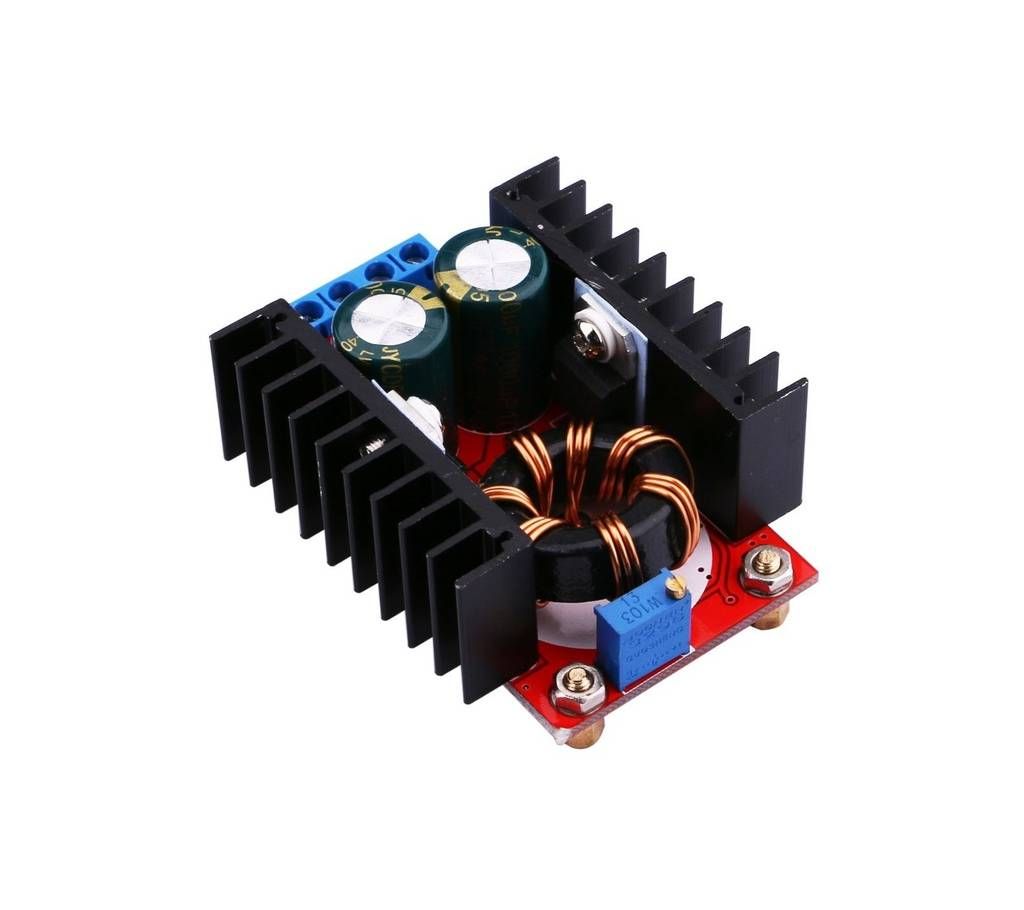

150W DC-DC Boost Converter 10-32V To 12-35V 6A Step UP Power Module is a DC-to-DC power converter that steps up voltage is a class of switched-mode power supply Power for the boost converter can come from any suitable DC sources, such as batteries, solar panels, rectifiers and DC generators. A process that changes one DC voltage to a different DC voltage is called DC to DC conversion. A boost converter is a DC to DC converter with an output voltage greater than the source voltage. A boost converter is sometimes called a step-up converter since it "steps up" the source voltage.

Input voltage :10-32V

Output voltage: 12-35V (adjustable)

Output Current: 6A (MAX)

Input Current: 10A (MAX) (Please enhance heat dissipation if more than 10A)

Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)

Easy to drive 65W 90W dual-core notebook.

Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45c

Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)

Output Ripple: 2% (MAX) 20M-bandwidth

Operating Temperature: Industrial (-40c to +85c) (ambient temperature exceeds 40c, lower power use, or to enhance heat dissipation)

Full load temperature rise: 45c

No-load current: 25mA typical

Voltage regulation: 0.5%

Dynamic response speed: 5% 200uS

Short circuit protection: None (Please Install fuses and protection circuits at Input port.)
