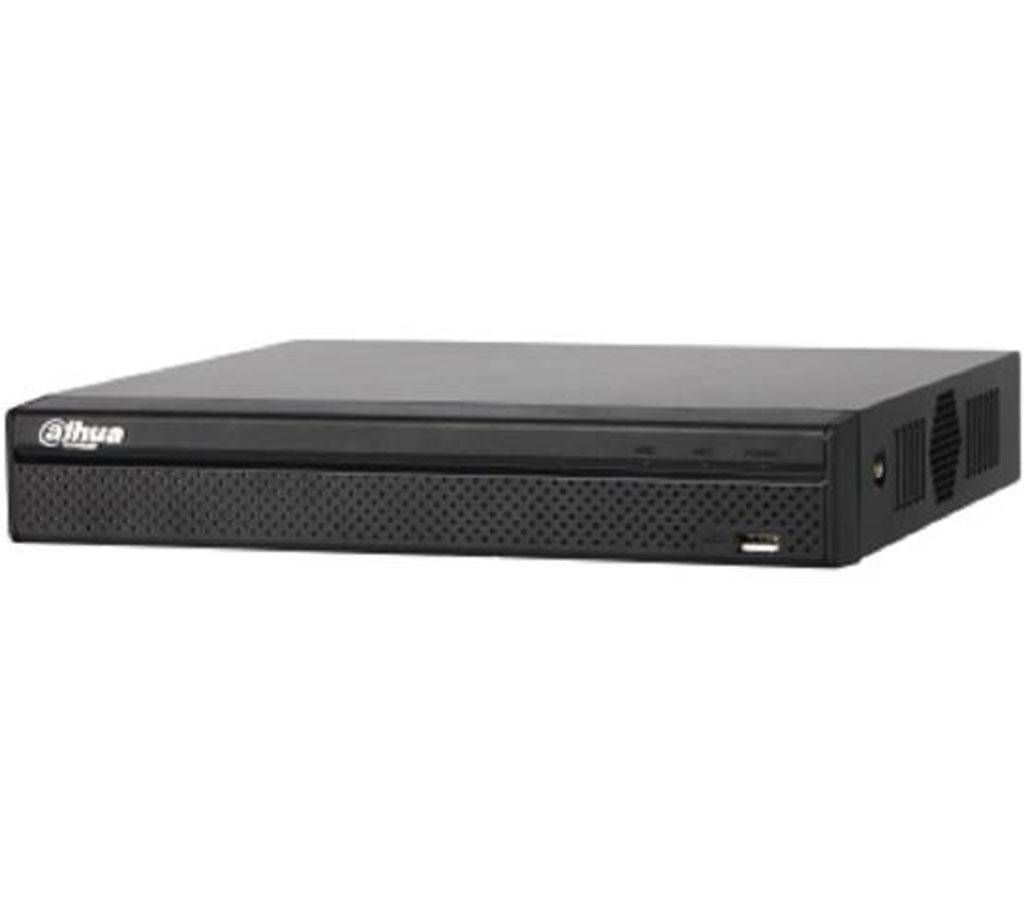

16 Channel 1U 4K&H.265 Lite Network Video Recorder
16চ্যালেন1U 4K&H.265 Liteনেটওয়ার্ক ভিডিও রেকর্ডার
NVR/4216-4KS2
16 Channel 1U 4K&H.265 Lite Network Video Recorder
H.265/H.264 codec decoding
Max 200Mbps Incoming Bandwidth
Up to 8MP Resolution for Preview and Playback
HDMI/VGA simultaneous video output
Support ANR technology to enhance the storage reliability when the network break down System
Main Processor
Quad-core embedded processor
Operating System
Embedded LINUX
Display
Interface
1 HDMI, 1 VGA
Resolution
3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display
8CH: 1/4/8/9
16/32CH: 1/4/8/9/16
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video Detection
Motion Detection, MD Zones: 396(22×18), Video Loss & Tampering
Alarm input
4 Channel, Low Level Effective,
Green Terminal Interface
Relay Output
2 Channel, NO/NC Programmable,
Green Terminal Interface
Playback and Backup
Playback
8CH: 1/4/8
16/32CH: 1/4/8/16
Search Mode
Time/Date, Alarm, MD & Exact search
(accurate to second), Smart search
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play,
Next File, Previous File, Next Camera,
Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode
USB Device/Network
Storage
Internal HDD
2 SATA III Port, Up to 6 TB capacity for each HDD
HDD Mode
Single
eSATA
N/A
Auxiliary Interface
USB
2 USB Ports (1 USB2.0, 1 USB3.0)
RS232
N/A
RS485
N/A
Third-party Support
Third-party Support
Dahua, Arecont Vision, AXIS, Bosch, Brickcom,
Canon, CP Plus, Dynacolor, Honeywell, Panasonic,
Pelco, Samsung, Sanyo, Sony, Videotec, and more
