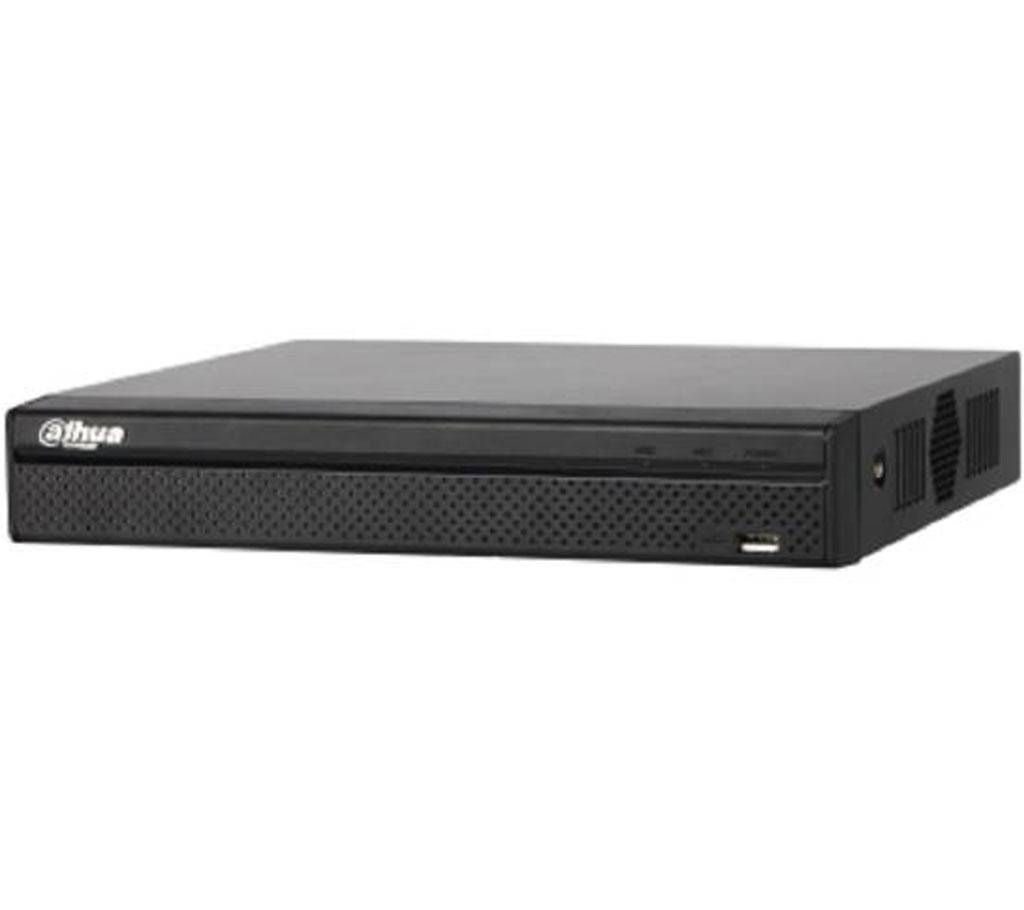

16 Channel 8PoE Mini 1U Lite Network Video Recorder
16চ্যানেল8PoE Mini 1U Liteনেটওয়ার্ক ভিডিও রেকর্ডার
NVR4116H-8P
16 Channel 8PoE Mini 1U Lite Network Video Recorder
H.264+/H.264 codec decoding
Max 80Mbps Incoming Bandwidth
Up to 5MP Resolution for Preview and Playback
HDMI/VGA simultaneous video output
Support IPC UPnP, 8PoE ports
Support ANR technology to enhance the storage reliability when the network break down
Main Processor
Dual-core embedded processor
Operating System
Embedded LINUX
Display
Interface
1 HDMI, 1 VGA
Resolution
1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768
Multi-screen Display
8CH: 1/4/8/9
16CH: 1/4/8/9/16
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video Detection
Motion Detection, MD Zones: 396 (22 × 18),
Video Loss and Camera Blank
Alarm input
2 Channel, Low Level Effective, Green Terminal Interface
Relay Output
1 Channel, NO/NC Programmable, Green Terminal Interface
Playback and Backup
Playback
8CH: 1/4/8
16CH: 1/4/8/16
Search Mode
Time /Date, Alarm, MD and Exact Search
(accurate tosecond)
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play,
Next File, Previous File, Next Camera,
Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode
USB Device/Network
Storage
Internal HDD
1 SATA III Port, Up to 6 TB capacity for each HDD
HDD Mode
Single
eSATA
N/A
Auxiliary Interface
USB
2 USB Ports (2 USB2.0)
RS232
N/A
RS485
N/A
Third-party Support
