2MP 25x Starlight IR PTZ Network Camera SD59225U-H
2MP 25x Starlight IR PTZ নেটওয়ার্ক ক্যামেরা
SD59225U-HNI

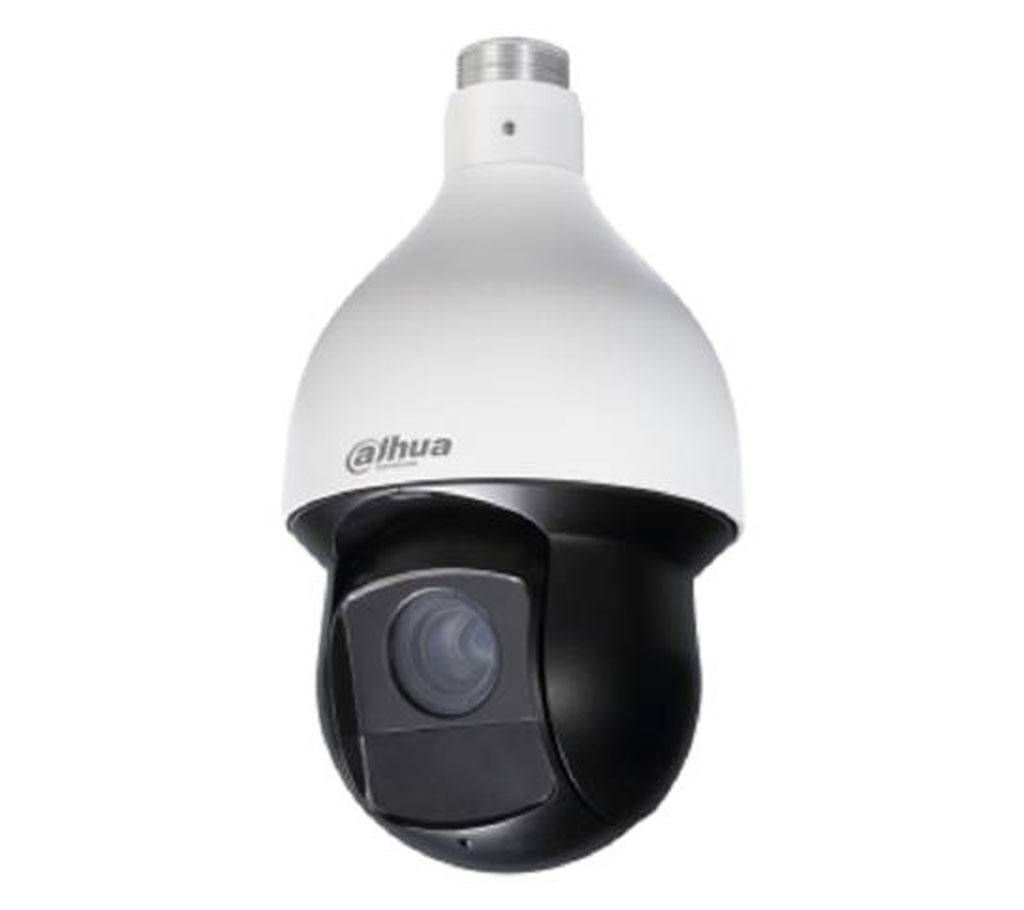

2MP 25x Starlight IR PTZ Network Camera
1/2.8” 2Megapixel STARVIS™ CMOS
Powerful 25x optical zoom
Starlight technology
H.265 Encoding
Max. 50/60fps@1080P
Auto-tracking and IVS
Support PoE+
IR distance up to 150m
IP66
Camera
Image Sensor
1/2.8” STARVIS™ CMOS
Effective Pixels
1920(H) x 1080(V), 2 Megapixels
RAM/ROM
1024M/128M
Scanning System
Progressive
Electronic Shutter Speed
1/1s~1/30,000s
Minimum Illumination
Color: [email protected]; [email protected] (IR on)
S/N Ratio
More than 55dB
IR Distance
Distance up to 150m (492ft)
IR On/Off Control
Auto/Manual
IR LEDs
4
Lens
Focal Length
4.8mm~120mm
Max. Aperture
F1.6 ~ F4.4
Angle of View
H: 59.2° ~ 2.4°
Optical Zoom
25x
Focus Control
Auto/Manual
Close Focus Distance
100mm~ 1000mm
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
Detect
Observe
Recognize
Identify
1613m(5292ft)
646m(2119ft)
323m(1060ft)
161m(528ft)
PTZ
Pan/Tilt Range
Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180°
Manual Control Speed
Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s
Preset Speed
Pan: 400° /s; Tilt: 300° /s
Presets
300
PTZ Mode
5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed Setup
Human-oriented focal Length/ speed adaptation
Power up Action
Auto restore to previous PTZ and lens status after power failure
Idle Motion
Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol
DH-SD
Intelligence
Auto Tracking
Support
IVS
Tripwire, Intrusion,Abandoned/Missing, Face Detection, Heat Map
