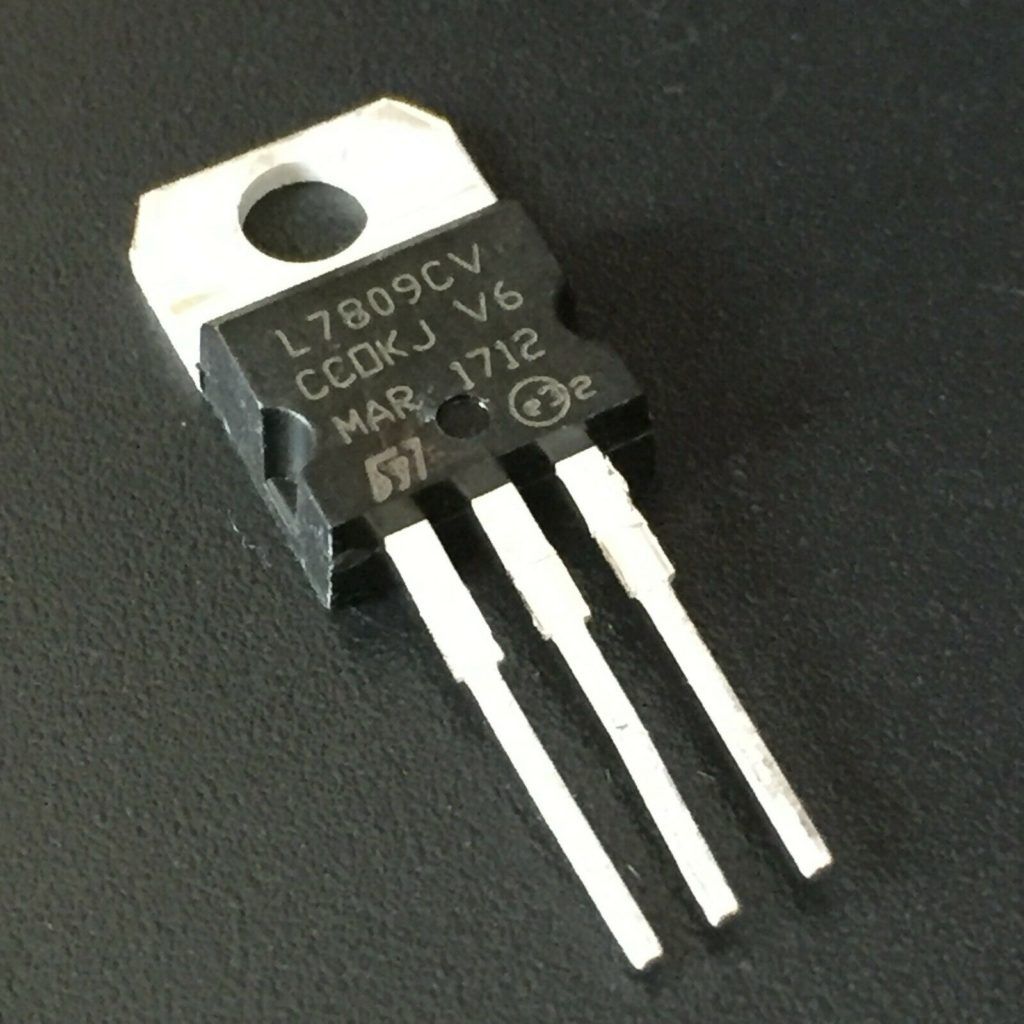

2Pcs- Chinese LM7809 L7809CV L7809 7809 9V 1.5A Voltage Regulator IC 3 Pin TO-220 Package Fixed 9V Positive Voltage Regulator IC Chip Electrical Circuitry & Parts
- Output Voltage: 9 V
- Maximum Output Current: 1.5A
- Package Type: TO-220
- Output Type: Fixed
- Mounting Type: Through Hole
- Maximum Input Voltage: 35 V
- Pin Count: 3
- Minimum Operating Temperature: 0 °C
- Maximum Operating Temperature: +125 °C
- Number of Outputs: 1
- Polarity: Positive
- Quiescent Current: 8mA
- Length: 10.4mm
- Dimensions: 10.4 x 4.6 x 15.75mm
- Load Regulation: 180 mV
- Height: 15.75mm
- Series: L78xx
- Width: 4.6mm
- Typical Dropout Voltage @ Current: 2V
- Line Regulation: 180 mV
- Dropout Voltage Measurement Current: 1A
- Accuracy: 2%
