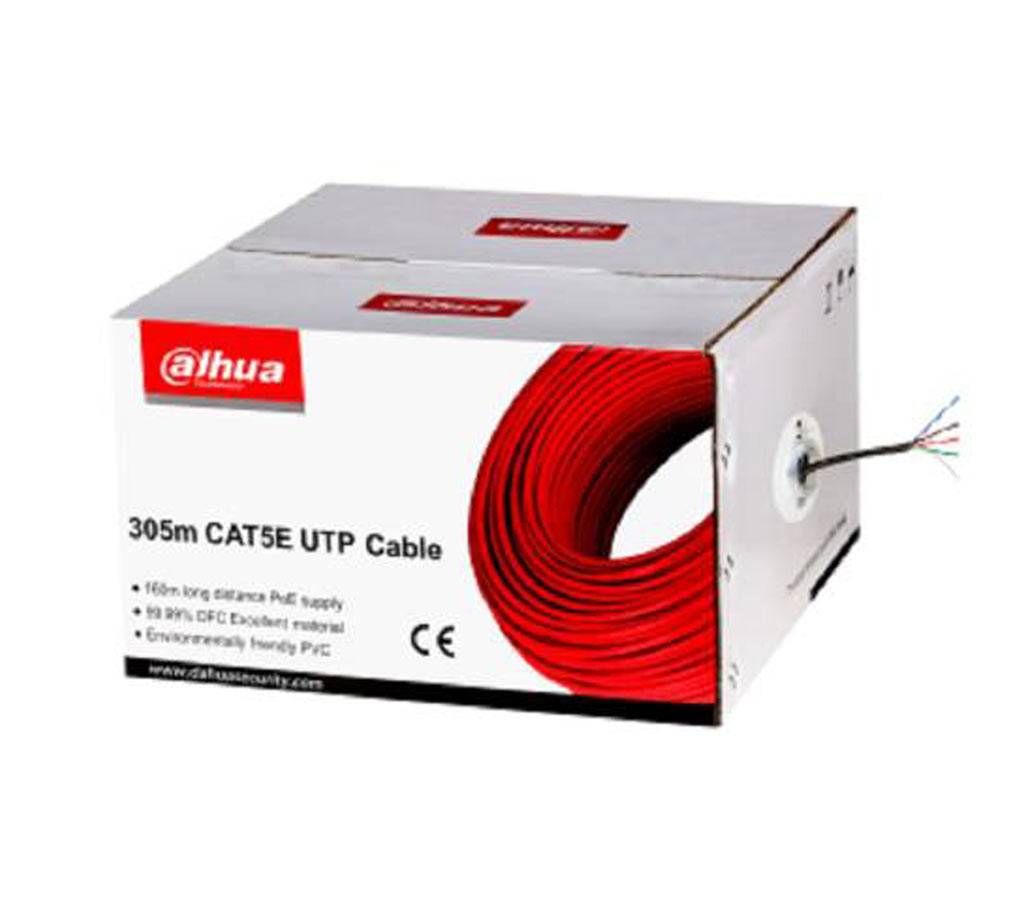

305m UTP CAT5E Cable PFM920I-5EUN
305m UTP CAT5E ক্যাবল PFM920I-5EUN
305m UTP CAT5E
Max.160m long distance PoE supply
99.99% OFC(oxygen free copper) Excellent material
Environmentally friendly PVC
Model: DH-PFM920I-5EUN
Conductor: Material
OFC(oxygen free copper): Composition
1/0.45
Wire gauge
0.45*4P0.005mm
Insulation
Material
HDPE
Min. average thickness
0.2mm
Diameter
0.83mm0.03mm
Color(4 Pairs)
Orange, white/orange; green, white/green;
blue, white/blue; brown, white/brown
Lay of twisted conductors
140mm
Jacket
Material: PVC
Min. average thickness: 0.5mm0.05mm
Diameter: 4.7mm
Color: Orange
Length: 305m (1000.66ft)
Max. DC resistance of single conductor: 12 Ω/100m
Max. unbalance rate of line pairs’ direct current resistance
12%
Min. insulation resistance: 5000MΩ·km
Max. mutual capacitance: 5.6NF/100m
Max. attenuation: 22(dB/100m, 100MHz)
N.W.: 7.8kg
Packaging dimension: 360mmx360mmx220mm
Weight (with packaging):8.6kg
