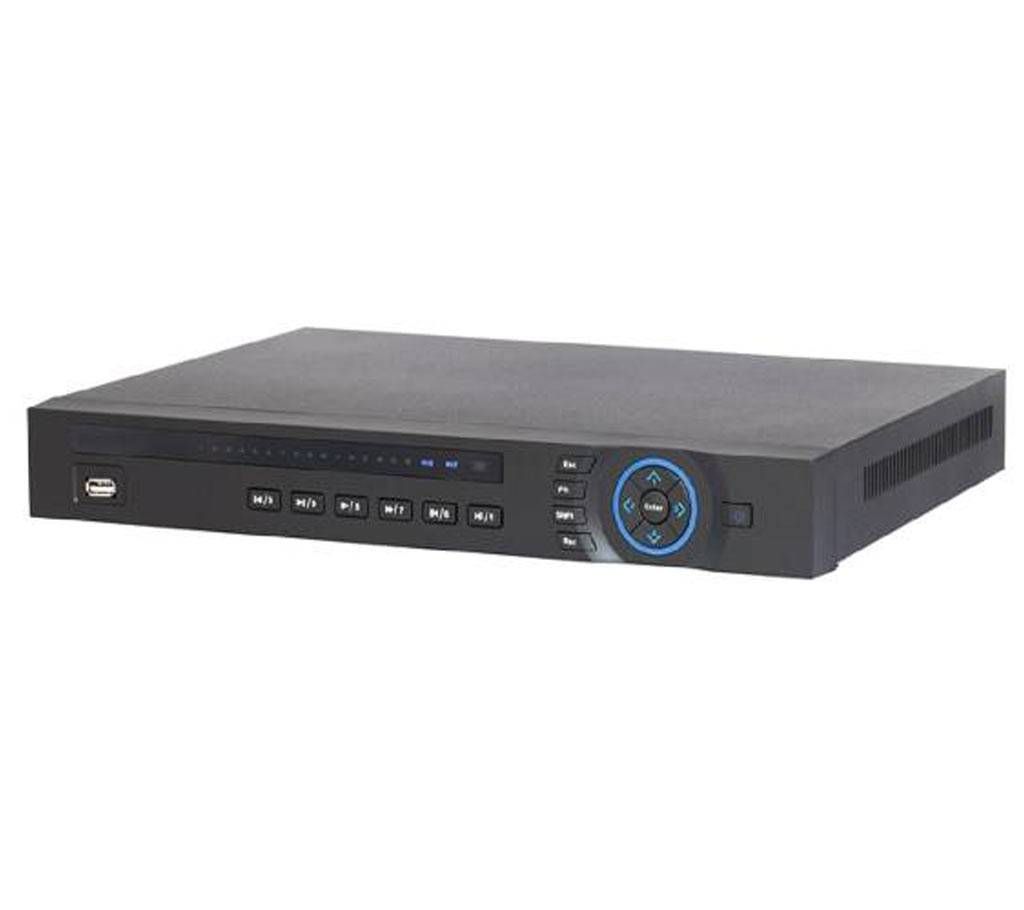

32 Channel 1U Network Video Recorder-4232
32 Channel 1U নেটওয়ার্ক ভিডিও রেকর্ডার 4232
H.264/MJPEG dual codec decoding
Max 200Mbps incoming bandwidth
Up to 5Mp resolution preview&playback
HDMI/VGA simultaneous video output
4/8/16 channel synchronous realtime playback, GRID interface
Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
ONVIF Version 2.4 conformance
3D intelligent positioning with Dahua PTZ camera
Support 2 SATA HDDs up to 8TB, 2 USB(1 USB3.0)
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Model DH-NVR4204 DH-NVR4208 DH-NVR4216 DH-NVR4232
System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Video & Audio
IP Camera Input 4 channel 8 channel 16 channel 32 channel
Two-way Talk 1channel Input, 1channel Output, RCA
Display
Interface 1 HDMI,1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4 1/4/8/9 1/4/8/9/16 1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression H.264/MJPEG
Resolution 5Mp（2560×1920）/3Mp（2048×1536）/1080P(1920×1080) / 720P(1280×720) / D1 (704×576/704×480)&etc.
Record Rate 200Mbps
Bit Rate 48~ 8192kbps
Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm, Video Push, Email,FTP, Buzzer & Screen tips
Video Detection Motion Detection,MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input 4 channel
Relay Output 2 channel
