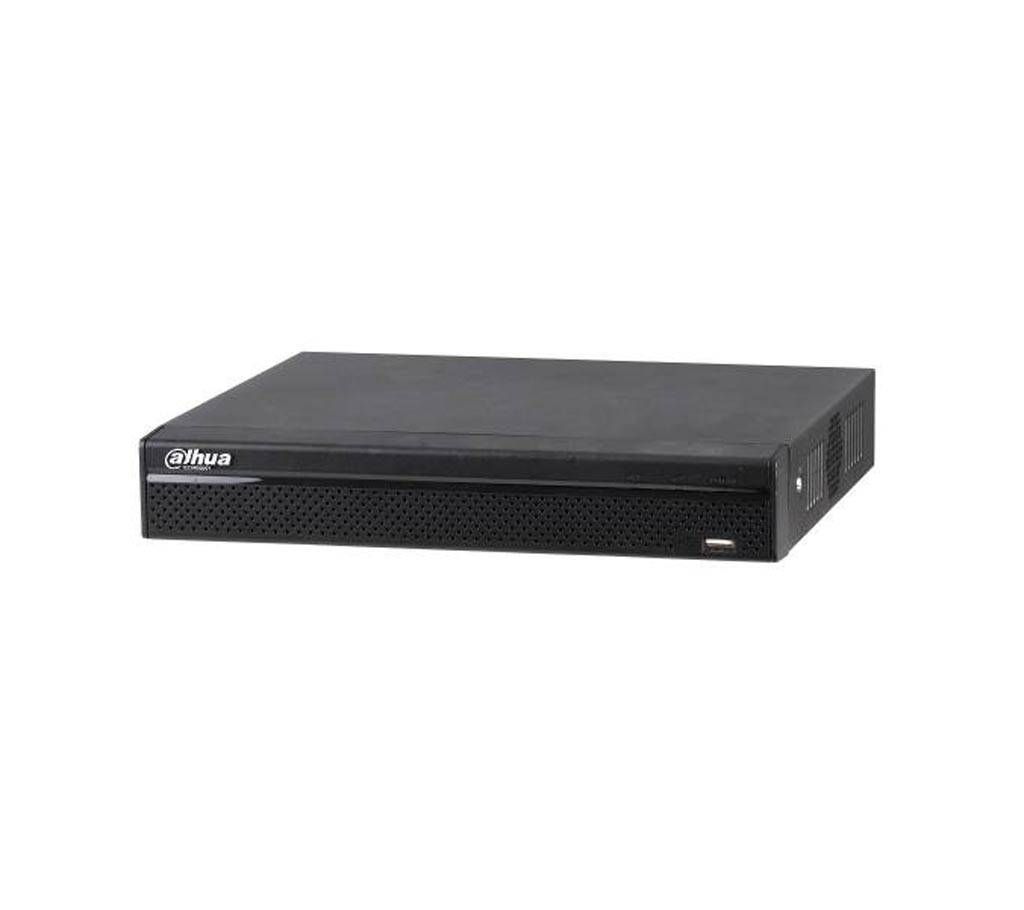

32 Channel Tribrid 1080P 1U Digital Video Recorder
32 Channel Tribrid 1080P 1U ডিজিটাল ভিডিও রেকর্ডার
HCVR5232AN-S3
32 Channel Tribrid 1080P 1U Digital Video Recorder
Embedded processor
Support HDCVI/CVBS video inputs
Max 32 channels IP camera inputs
Max 128Mbps Incoming Bandwidth
Long transmission distance over coax cable
Support 2 SATA HDD, up to 16TB
Main Processor
Embedded Processor
Operating System
Embedded LINUX
Display
Interface
1 HDMI ,1 VGA,1 TV
Resolution
1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display
1/4/8/9/16/25
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input
N/A
Relay Output
N/A
Playback and Backup
Playback
1/4/9/16
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode
USB Device/Network
Storage
Internal HDD
2 SATA Ports, up to 8TB capacity for each disk
eSATA
N/A
Auxiliary Interface
USB
2 USB Ports (1 USB 3.0,1 USB 2.0)
RS232
N/A
RS485
1 Port, for PTZ Control
Third-party Support
Third-party Support
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Audio and Video
HDCVI Camera Input
32 Channel
IP Camera Input
32 Channel, each channel up to 5MP
Audio In/Out
1/1, RCA
Two-way Talk
Reuse audio in/out, RCA
Recording
Compression
H.264+/H.264
Resolution
1080P, 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate
Main stream: 1080P(1~15fps)
1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/
