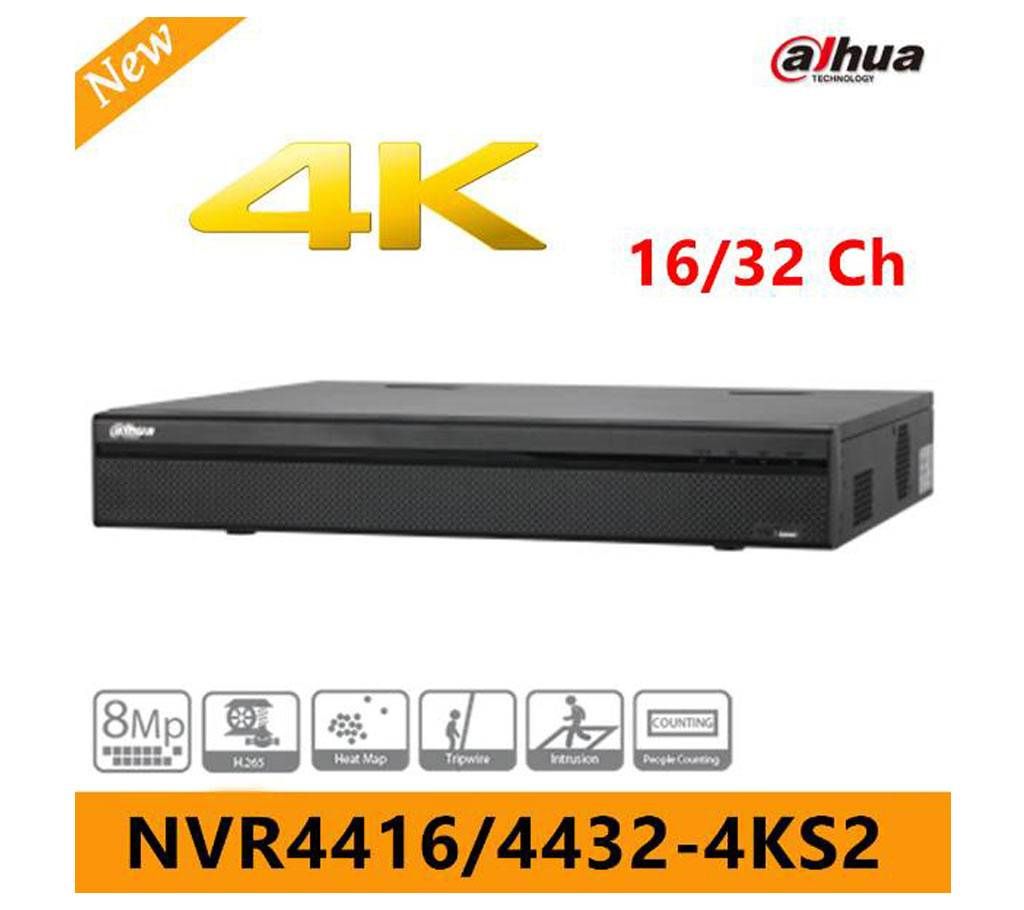

32Channel 1.5U 4K&H.265 Lit Network Video Recorder
32চ্যানেল1.5U 4K&H.265 Litনেটওয়ার্ক ভিডিও রেকর্ডার
NVR/4432-4KS2
32 Channel 1.5U 4K&H.265 Lite Network Video Recorder
H.265/H.264 codec decoding
Max 200Mbps Incoming Bandwidth
Up to 8MP Resolution for Preview and Playback
HDMI/VGA simultaneous video output
Support ANR technology to enhance the storage reliability when the network break down
System
Main Processor
Quad-core embedded processor
Operating System
Embedded LINUX
Display
Interface
1 HDMI, 1 VGA
Resolution
3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display
1/4/8/9/16
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video Detection
Motion Detection, MD Zones: 396(22×18), Video Loss & Tampering
Alarm input
16 Channel, Low Level Effective,
Green Terminal Interface
Relay Output
4 Channel, NO/NC Programmable,
Green Terminal Interface
Playback and Backup
Playback
1/4/8/16
Search Mode
Time/Date, Alarm, MD & Exact search
(accurate to second), Smart search
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play,
Next File, Previous File, Next Camera,
Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode
USB Device/Network
Storage
Internal HDD
4 SATA III Port, Up to 6 TB capacity for each HDD
HDD Mode
Single
eSATA
N/A
Auxiliary Interface
USB
2 USB Ports (1 USB2.0, 1 USB3.0)
RS232
1 Port, for PC Communication and Keyboard
RS485
1 Port, for PTZ Control
