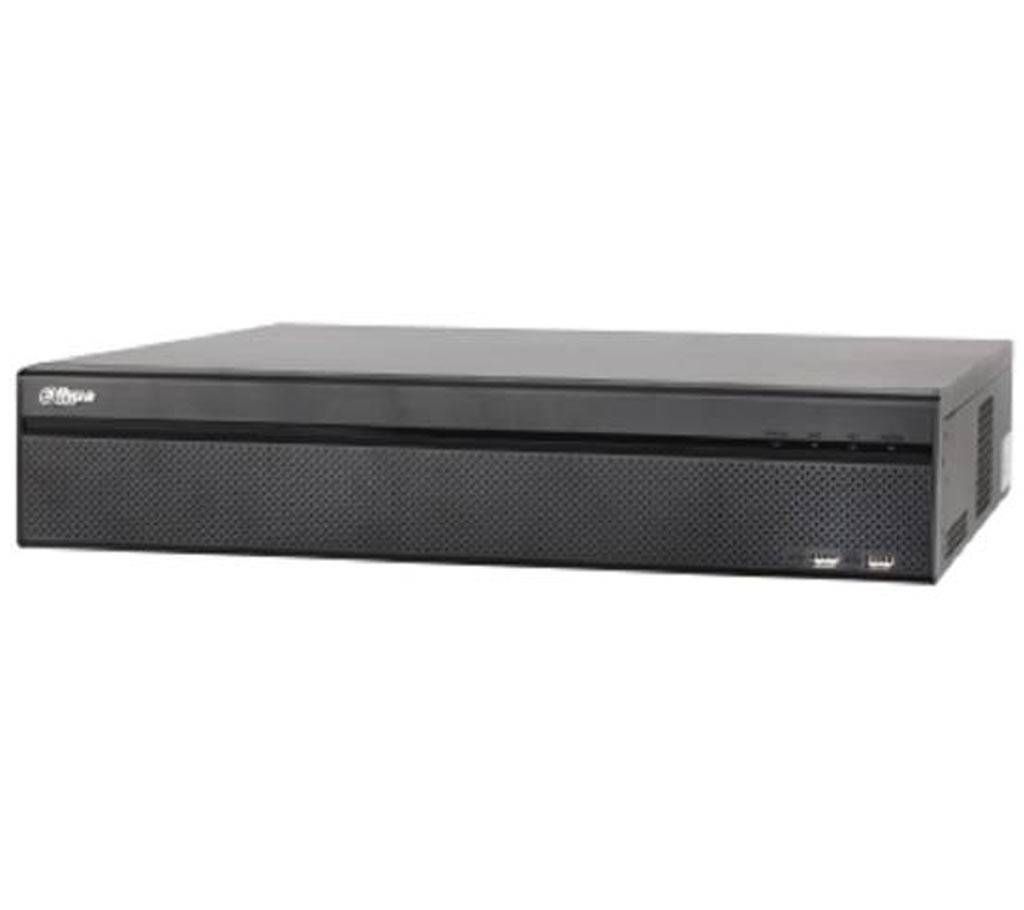

32Channel 2U 4K&H.265 Pro Network Video Recorder
32Channel 2U 4K&H.265 Proনেটওয়ার্ক ভিডিও রেকর্ডার
32/64 Channel 2U 4K&H.265 Pro Network Video Recorder
H.265/H.264/MJPEG/MPEG4 codec decoding
Max 320Mbps incoming bandwidth
Up to 12Mp resolution preview&playback
2HDMI/VGA simultaneous video output
3D intelligent positioning with Dahua PTZ camera
Support RAID 0/1/5/6/10
System
Main Processor Quad-core embedded processor
Operating System Embedded LINUX
Display
Interface 2 HDMI (1 HDMI up to 3840x2160, Different Source ), 1 VGA
Resolution 3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display 1st screen:
16CH: 1/4/8/9/16
32CH: 1/4/8/9/16/25/36
64CH: 1/4/8/9/16/25/36
2nd screen: 1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input 16 Channel, Low Level Effective, Green Terminal Interface
Relay Output 6 Channel, NO/NC Programmable, Green Terminal Interface
Tracking Trigger Event N/A
Playback and Backup
Sync Playback 1/4/9/16
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network/Internal SATA burner/eSATA Device
Storage
Internal HDD 8 SATA III Ports, up to 8TB capacity for each HDD
HDD Mode Single, Raid 0/1/5/6/10 (Enterprise-level HDDs are recommended)
eSATA 1 eSATA port
SAS N/A
