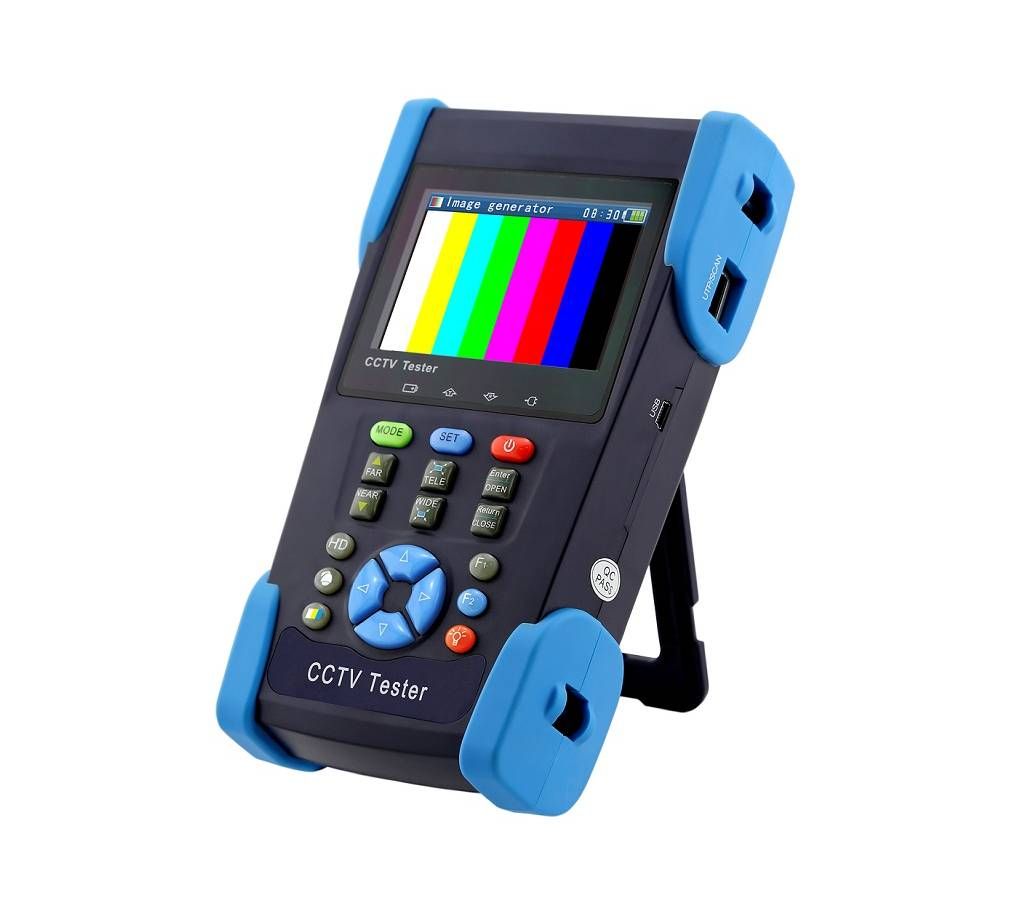

3.5 inch digital TFT-LCD,HD Coaxial Tester
3.5 inch digital TFT-LCD,HD Coaxial টেস্টার
8 languages can select: English, French, Spanish, German, Italian, Russian, Polish & Portuguese
3.5-inch TFT LCD, 480 (RGB) x 320 pixels, global viewing display screen
LED lamp, easy to operate at night
Micro SD card: changeable
Custom shortcut keys (F1 and F2)
LCD screen brightness/contrast/color saturation are adjustable
Automatically adopts and displays the video format of NTSC/PAL
PING testing, test IP camera or the Ethernet port of other network device whether work normally or the IP address whether right
IP address scan, quickly search the IP address of the connected IP camera and the other network device
Poe voltage measurement, test the supply voltage of PoE switch to IP cameras, wireless AP device
Device port flicker, easy to find the switch port
Link monitor, check the setting IP address whether available
PTZ address scan, search up the ID of PTZ camera
Network cable and telephone cable testing, display the sequence of connection and the number of the LAN cable
Support RS485, rate 600-115,200bps adjustable
Multi-protocol, supports more than thirty PTZ protocols, such as Pelco-P, Pelco-D, Samsung
PTZ protocol analysis, control protocol command displays to check RS485 transmission whether is normal, easy to find the fault device
PTZ control, pan/tilts the P/T unit, zoom-in/out the lens, adjusts the focus, aperture and sets and the preset position
12V DC, 1A power output for camera
Audio input test, testing the audio signal from pickup devices
AHD(2.0) TVI CVI test ,support 1080P test
