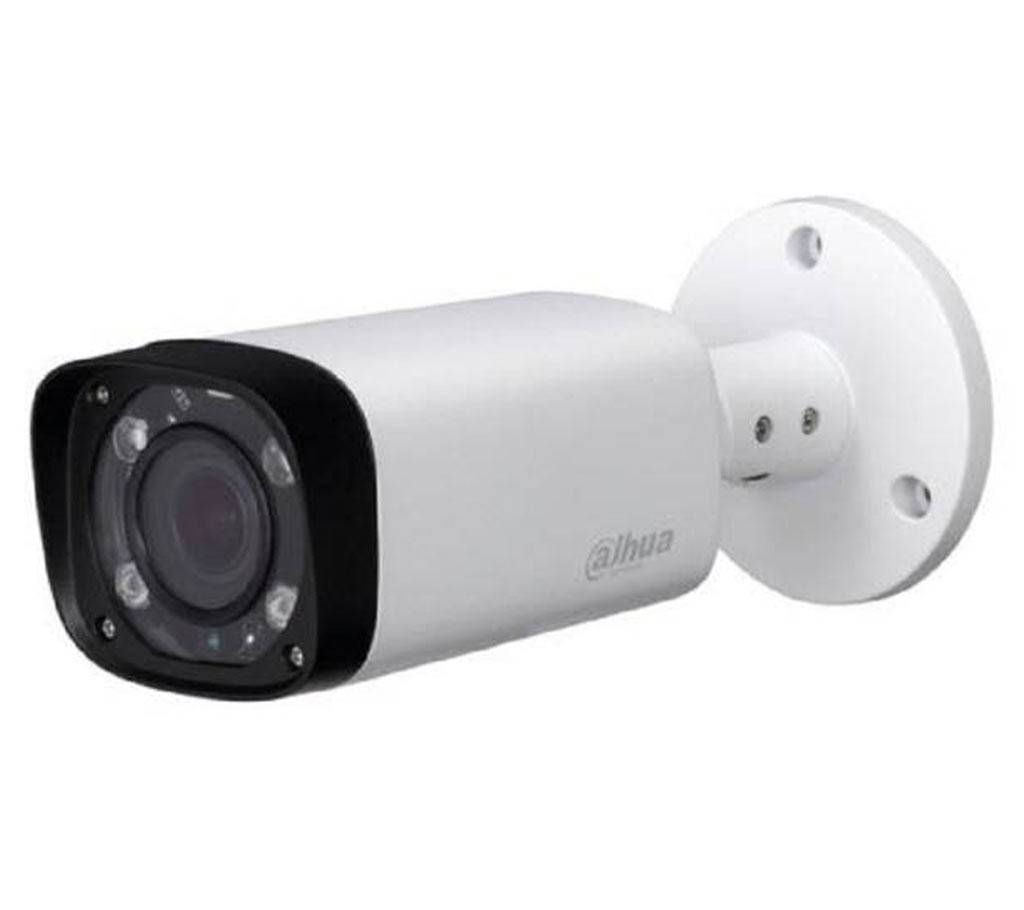

3MP IR Bullet Network Camera 2320R-ZS/VFS-IRE6
3MP IR বুলেট নেটওয়ার্ক ক্যামেরা 2320R-ZS/VFS-IRE6
IPC-HFW2320R-ZS/VFS-IRE6
3MP IR Bullet Network Camera
1/3” 3Megapixel progressive CMOS
H.264+ & H.264 dual-stream encoding
20fps@3M(2048x1536) & 25/30fps@2M (1920×1080)
DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Micro SD card slot, up to 128GB
2.7~12mm varifocal lens
Max IR LEDs Length 60m
IP67, PoE
Camera
Image Sensor
1/3” 3Megapixel progressive CMOS
Effective Pixels
2304(H) x1536(V)
RAM/ROM
256MB/16MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination
0.1Lux/F1.4(Color), 0Lux/F1.4(IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 60m(197ft)
IR On/Off Control
Auto/ Manual
IR LEDs
4
Lens
Lens Type
Motorized(-ZS),Manual(-VFS)
Mount Type
Board-in
Focal Length
2.7mm~12mm
Max. Aperture
F1.4
Angle of View
H:87°~29°, V:42°~15°
Focus Control
Motorized(-ZS),Manual(-VFS)
Close Focus Distance
0.3m
DORI Distance
Lens
Detect
Observe
Recognize
Identify
62m(203ft)
25m(82ft)
12m(39ft)
6m(20ft)
175m(574ft)
70m(230ft)
35m(115ft)
18m(59ft)
PTZ
Pan/Tilt Range
Pan:0° ~360 ° ;Tilt:0° ~90° ;Rotation:0° ~360°
