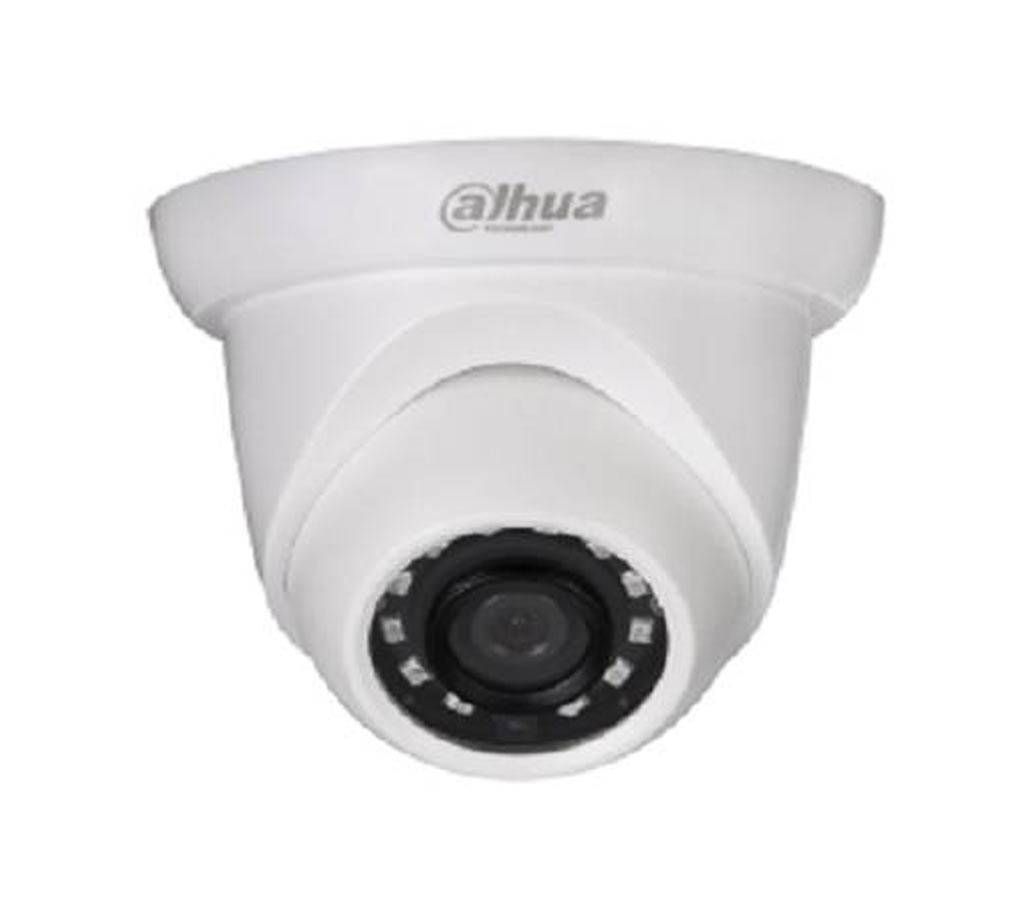

3MP IR Eyeball Network Camera HDW1320S
3MP IR নেটওয়ার্ক ক্যামেরা HDW1320S
IPC-HDW1320S
3MP IR Eyeball Network Camera
1/3” 3Megapixel progressive CMOS
H.264+ & H.264 dual-stream encoding
20fps@3M(2048×1536) &25/30fps@2M(1920×1080)
DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
2.8 mm fixed lens (3.6mm optional)
Max IR LEDs Length 30m
IP67, PoE
Product Selector
Use one of the options below to locate your desired product.
Image Sensor
1/3” 3Megapixel progresive CMOS
Effective Pixels
2304(H) x1536(V)
RAM/ROM
256MB/16MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination
0.1Lux/F2.0(Color), 0Lux/F2.0(IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 30m(98ft)
IR On/Off Control
Auto/ Manual
IR LEDs
18
Lens
Lens Type
Fixed
Mount Type
Board-in
Focal Length
2.8 mm (3.6 mm optional)
Max. Aperture
F2.0/F2.0
Angle of View
H:98°/77°,V:51°/40.5°
Focus Control
Fixed
Close Focus Distance
N/A
DORI Distance
Lens
Detect
Observe
Recognize
Identify
2.8 mm
58m(190ft)
23m(75ft)
12m(39ft)
6m(20ft)
3.6 mm
73m(240ft)
29m(95ft)
15m(49ft)
7m(23ft)
PTZ
Pan/Tilt Range
Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
