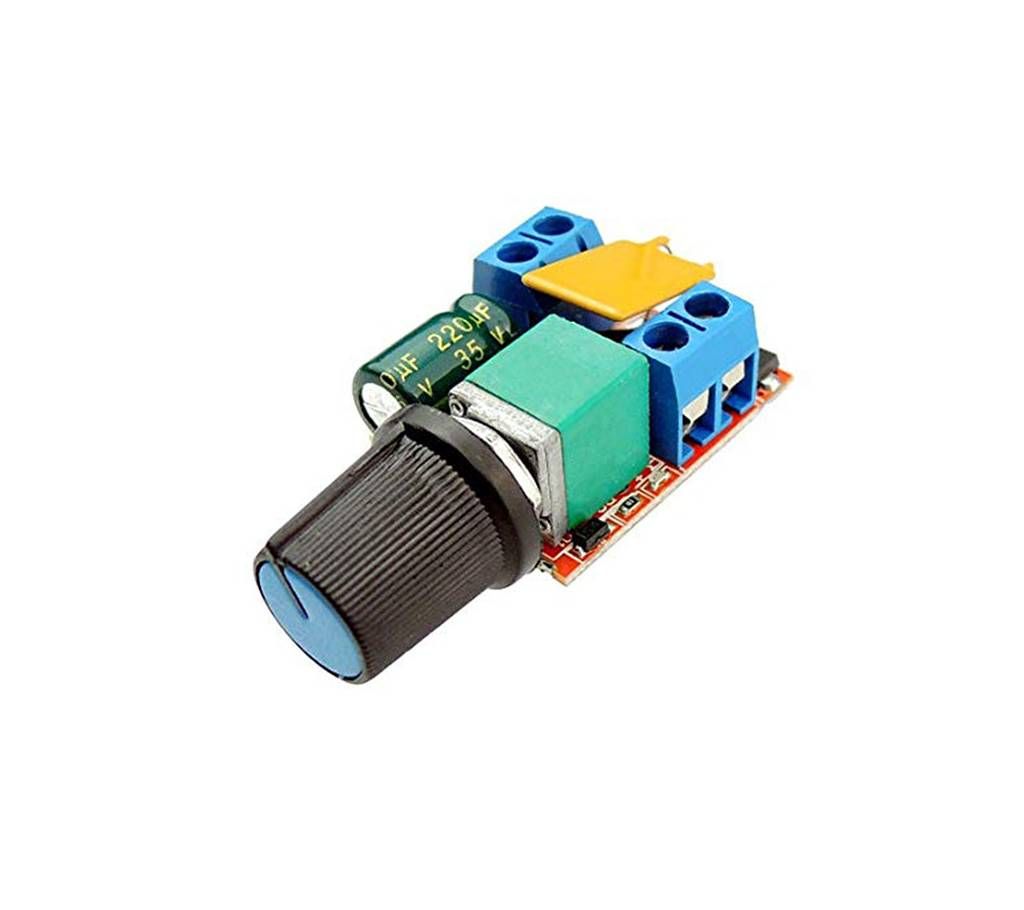

3Volt to 35Volt 5A PWM Speed Controller for DC motor or High Power Led Dimer
3Volt to 35Volt 5A PWM স্পীড কনট্রোলার DC মটর or হাই পাওয়ার Led ডিমার
The DC Motor Speed Controller allows controlling direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%. Pulse width modulation (PWM) is a powerful technique for controlling analog circuits with a microprocessor's digital outputs. PWM is employed in a wide variety of applications, ranging from measurement and communications to power control and conversion. Analog circuits.The motor speed controller can easily provide a continuous current of 5A to your DC motor or other DC load. 3Volt to 35Volt 5A PWM Speed Control are Use For DC Motor's Speed Controlling or High power LED's Light Controlling.
Operating Voltage: DC 3 V- 35 V
Control Power: 90 W (Max)
Quiescent Current: 0.015 A (Standby)
PWM Duty Cycle: 1% -100%
PWM Frequency: 10khz
Size: 45 x 25 x 15 mm (L*W*H)
