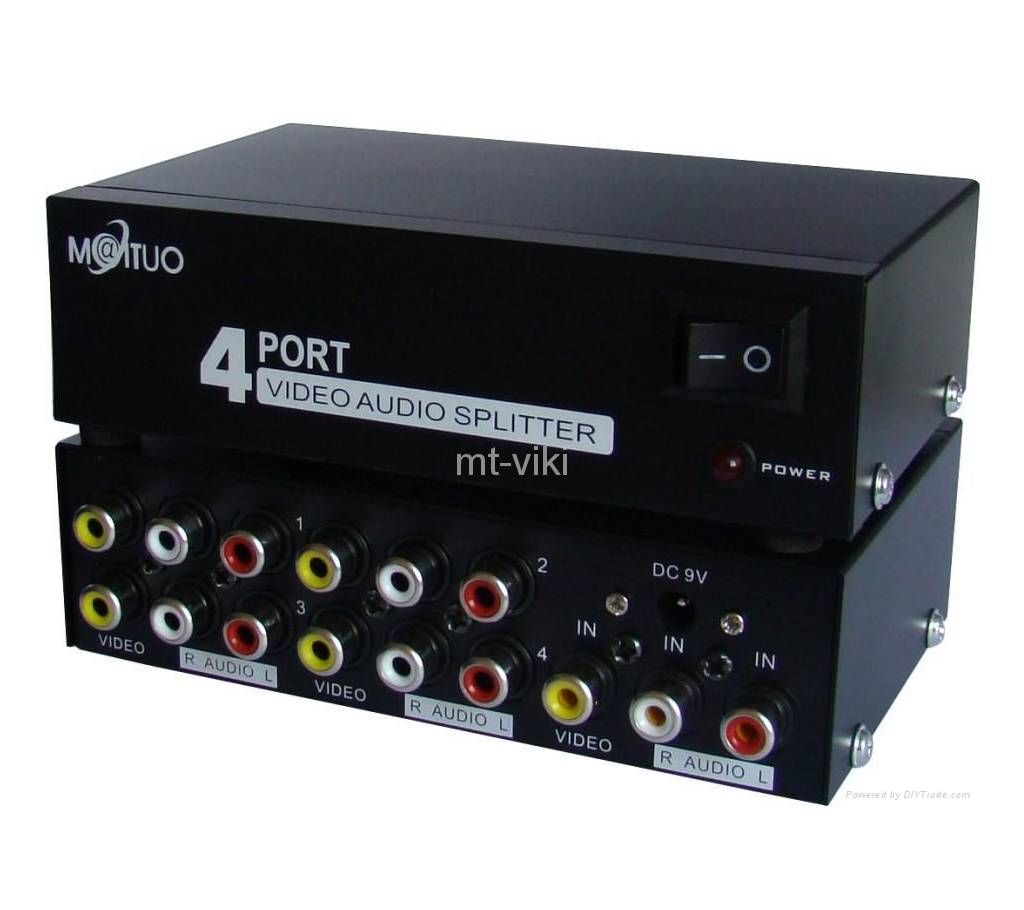

4 PORT VIDEO AUDIO SPLITTER 1 IN 4 OUT AV DIVIDER
1. Video
● Input level Resistance: VS 0.8-1.0Vp-p/75Ω
● Output level Resistance: VS 0.8-1.0Vp-p/75Ω
● Bandwidth: 50Hz-5.5MHz
● Input Connector: 1
● Output Connector: 4
2. Audio
● Input level Resistance: 2V(RMS)/47KΩ
● Output level Resistance: 2V(RMS)/1KΩ
● Frequency: 10Hz-20KHz，0db
● Input Connector: 1(R+L)
● Output Connector: 4(R+L)
● Power: DC 9V 50/60Hz 5W
● Enclosure: Metal
