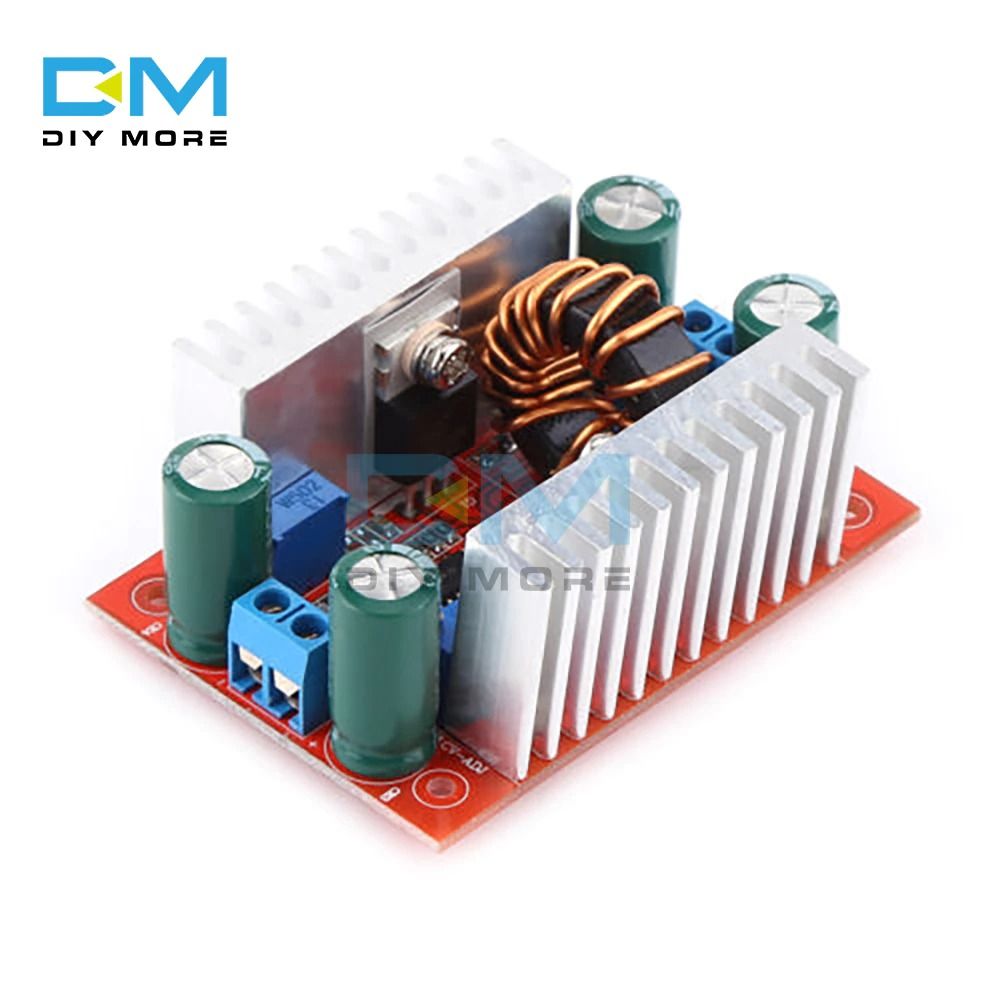

400W 15A Step Up Boost Converter Constant Current DC-DC 12V to 24V 48V Power Supply Transformer LED Driver Voltage Regulator
- Module name :400W boost constant current module
- Module properties: non-isolated step-up module (BOOST)
- Input voltage: DC8.5V-50V
- Input current: 15A (MAX) exceeds 8A please enhance heat dissipation
- Quiescent current: 10mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
- Output voltage: 10-60V continuously adjustable
- Constant] range: 0.2-12A
- Temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
- Operating frequency: 150KHz
- Conversion efficiency: up to 96%
- Overcurrent protection: yes
- Input reverse polarity protection: no
- Installation: 4 2.55mm screw holes
- Connection method: Connection Output
- Module size: 67mm X48mm X 28mm (LxWxH)
- Single module: 60 g
