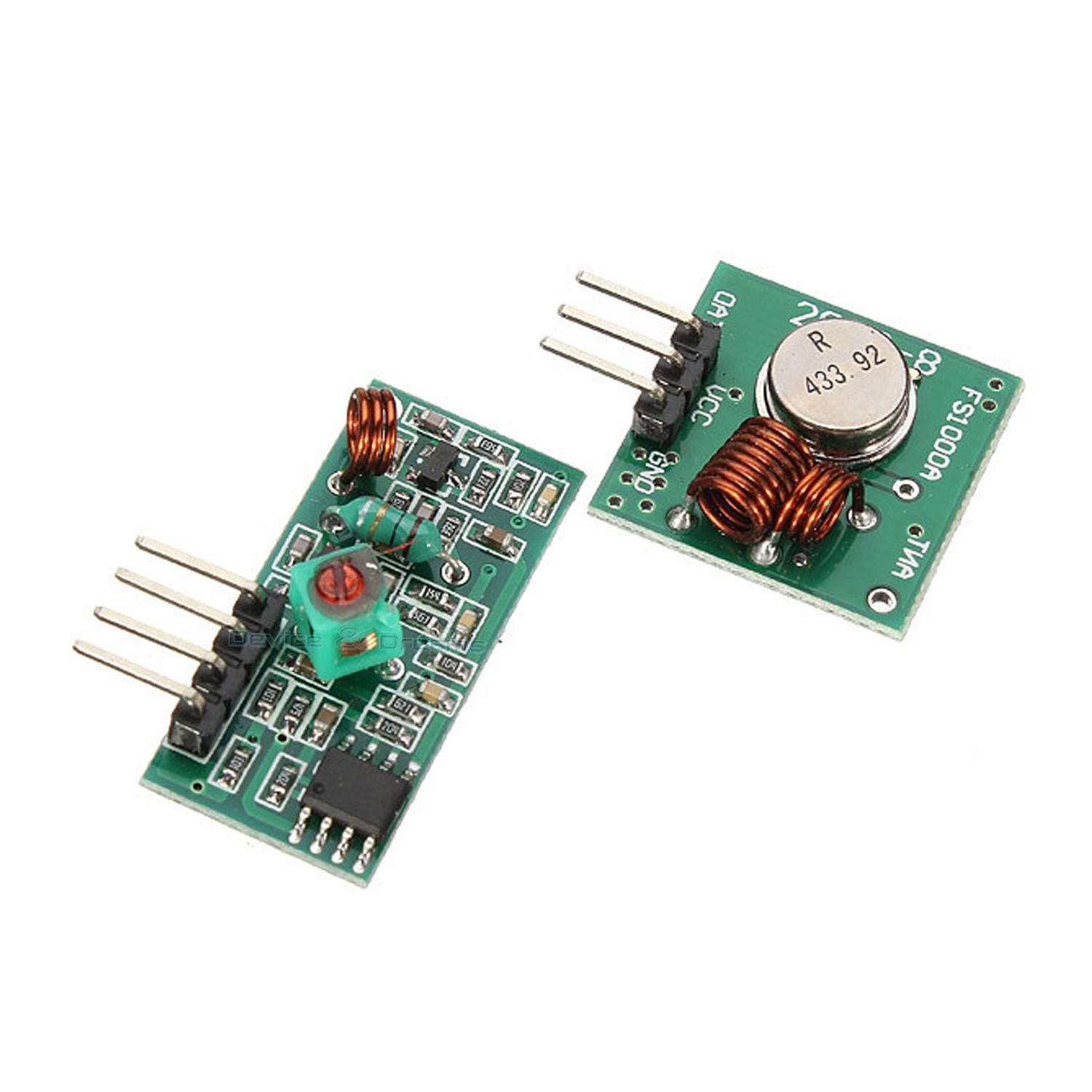

433Mhz Rf Transmitter & Receiver Module Kit For Arduino / Arm /Mcu Wl - Solar Panel
- Receiver module parameters
- Product Model: MX-05V
- Operating voltage: DC5V
- Quiescent Current: 4MA
- Receiving frequency: 433.92MHZ
- Receiver sensitivity:-105DB
- Size: 30 * 14 * 7mm
- External antenna: 32CM single core wire, wound into a spiral
- Technical parameters of the transmitter head
- Product Model: MX-FS-03V
- Launch distance :20-200 meters (different voltage, different results)
- Operating voltage :3.5-12V
- Dimensions: 19 * 19mm
- Operating mode: AM
- Transfer rate: 4KB / S
- Transmitting power: 10mW
- Transmitting frequency: 433M
- An external antenna: 25cm ordinary multi-core or single-core line
- Pinout from left → right: (DATA; VCC; GND)
- Package included：1 x 433Mhz RF Transmitter & Receiver Module Kit
