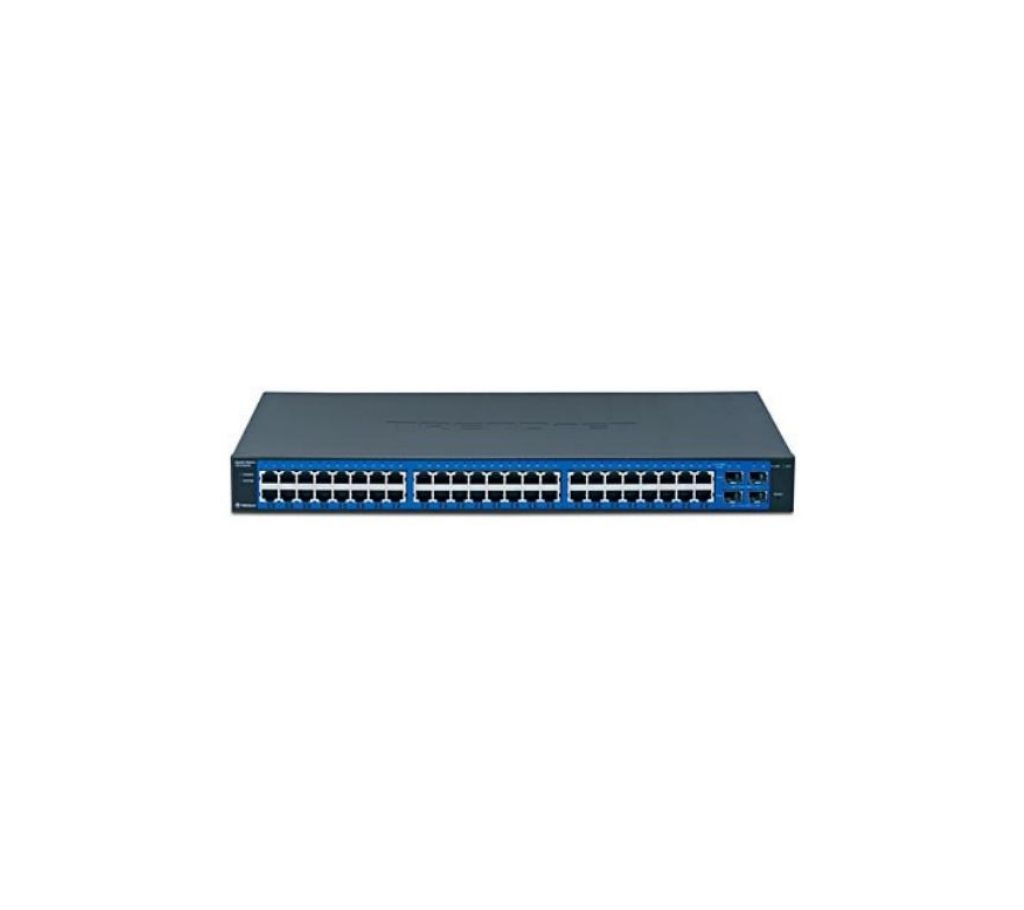

48-Port Gigabit Web Smart Switch w/ 4 Shared Mini-GBIC Slots
48-Port Gigabit Web Smart সুইচ w/ 4 Shared Mini-GBIC Slots
Standards
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3z 1000Base-SX/LX (Mini-GBIC)
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3ad Port Trunk
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1p QoS
IEEE 802.1Q VLAN Tag
IEEE 802.1X Authentication
SNMP v1
Network Media
Ethernet: UTP/STP Cat. 3, 4, 5 up to 100m
Fast Ethernet: UTP/STP Cat. 5, 5e up to 100m
Gigabit: UTP/STP Cat. 5, 5e, 6 up to 100m
Protocol /Topology
CSMA/CD, Star
LAN Ports
48 x 10/100/1000Mbps Auto-MDIX Gigabit Ethernet ports 4 x Mini-GBIC slots (shared with Gigabit ports 45-48)
Data Transfer Rate
Ethernet: 10Mbps/20Mbps (Half /Full-Duplex)
Fast Ethernet: 100Mbps/200Mbps (Half /Full-Duplex)
Gigabit Ethernet: 2000Mbps (Full-Duplex)
Address Table
8K entries
Data RAM Buffer
1024KBytes
Switch Fabric
96Gbps forwarding capacity
Diagnostic LEDs
Per Unit: Power, System
Per Cooper Gigabit Port: Link/ACT, Speed (1000M-Green, 100M-Amber)
Per Mini-GBIC Gigabit Port: Link/ACT
Power Supply
100-240V AC, 50/60Hz internal power supply
Power Consumption
99.7 watts (max)
Dimensions (W x D x H)
440 x 310 x 44mm (17.32 x 12.25 x 1.73 in.)
Weight
4.43kg (9.75 lbs)
Temperature
Operating : 0° C ~ 40° C (32° F ~ 104° F); storage: -10° C ~ 70° C (14° F ~ 158° F)
Humidity
Operating: 10% ~ 90% RH (non-condensing);storage: 5% ~ 90% RH (non-condensing)
Certifications
CE, FCC
PACKAGE CONTENTS
TEG-448WS
Multi-Language Quick Installation Guide
Utility CD-ROM
Power Cord
Rack-Mount Kit
