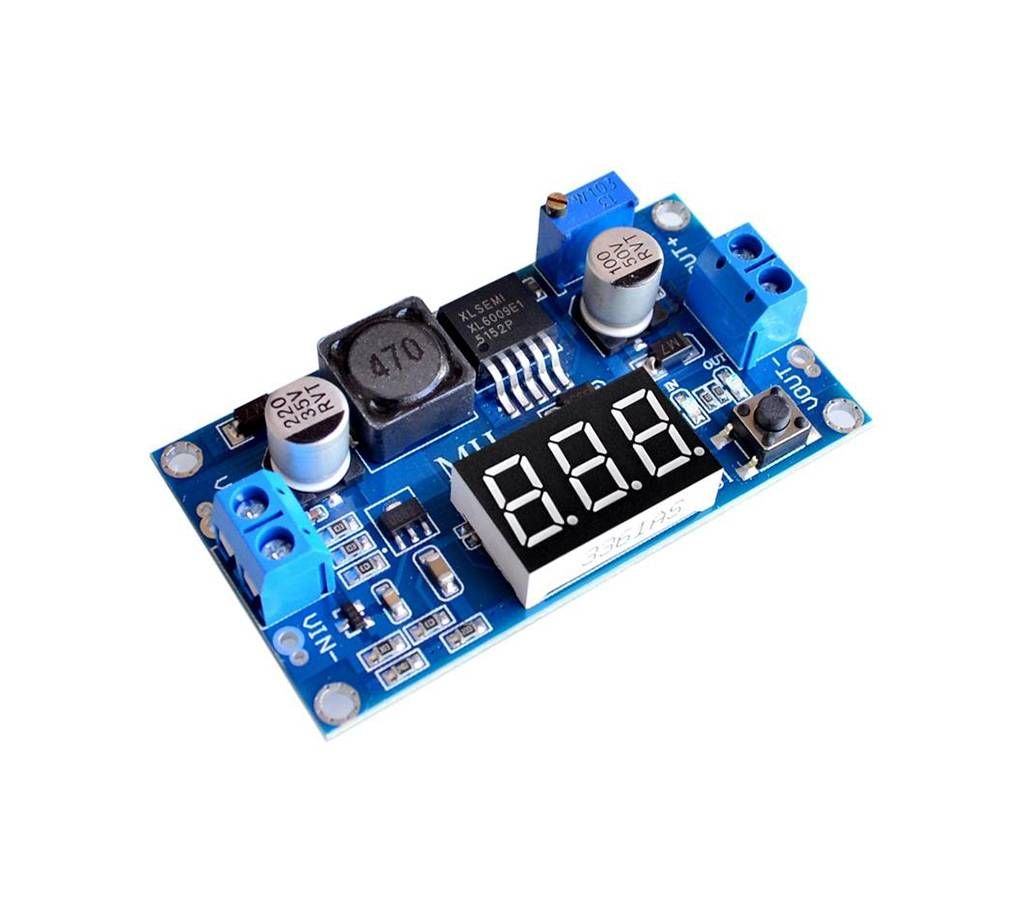

4A DC-DC Adjustable Step-up Power Supply Module with LED Voltmeter
4A DC-DC অ্যাডজাস্টেবল Step-up পাওয়ার সাপ্লাই মডিউল with LED ভোল্টমিটার
Model: XL6009 boost module
Module Properties: non-isolated step-up (BOOST)
Rectification: Non-Synchronous Rectification
Input range: 3V ~ 32V
Output range: 5V ~ 35V
Input Current: 4A (max), empty load current 18mA (5V input, 8V output, empty load current 18mA, the higher the voltage, the greater the empty load current.)
Conversion efficiency: <94% (the greater the pressure, the lower the efficiency)
Switching Frequency: 400KHz
Output ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)
Load regulation: ± 0.5%
Voltage regulation: ± 0.5%
