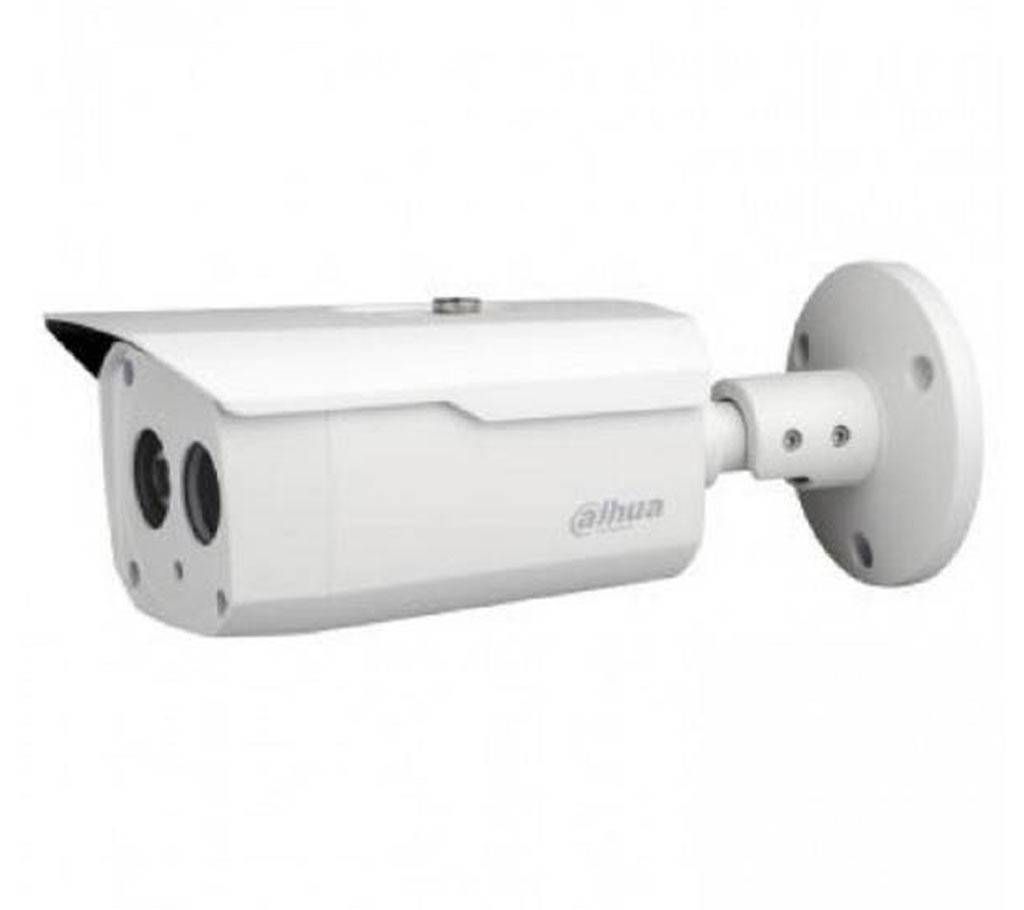

4MP WDR LXIR Bullet Network Camera HFW4431B-AS
4MP WDR LXIR বুলেট নেটওয়ার্ক ক্যামেরা HFW4431B-AS
IPC-HFW4431B-AS
4MP WDR LXIR Bullet Network Camera
1/3” 4Megapixel progressive scan CMOS
Support H.264&H.265 dual codec
25/30fps@4M(2688×1520)
Smart Detection supported
WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
3.6mm fixed lens (6mm optional)
1/1 Alarm in/out, 1/1 audio in/out
Max. IR LEDs Length 50m
Micro SD memory, IP67, PoE
Camera
Image Sensor
1/3” 4Megapixel progressive scan CMOS
Effective Pixels
2688(H)x1520(V)
RAM/ROM
512MB/32MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination
0.08Lux/F2.0( Color,1/3s,30IRE)
0.3Lux/2.0( Color,1/30s,30IRE)
0Lux/F2.0(IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 50m (164ft)
IR On/Off Control
Auto/ Manual
IR LEDs
1
Lens
Lens Type
Fixed
Mount Type
Board-in
Focal Length
3.6mm (6mm optional)
Max. Aperture
F2.0 (F2.0)
Angle of View
H: 87° (55°), V: 48° (31°)
Optical Zoom
N/A
Focus Control
Fixed
Close Focus Distance
N/A
DORI Distance
Lens
Detect
Observe
Recognize
Identify
3.6 mm
80m(262ft)
32m(105ft)
16m(52ft)
8m(26ft)
6.0 mm
117m(384ft)
47m(154ft)
23m(75ft)
12m(39ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range
Pan:0˚~360˚; Tilt:0˚~87˚; Rotation:0˚~360˚
Intelligence
IVS
Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions
Face Detection
