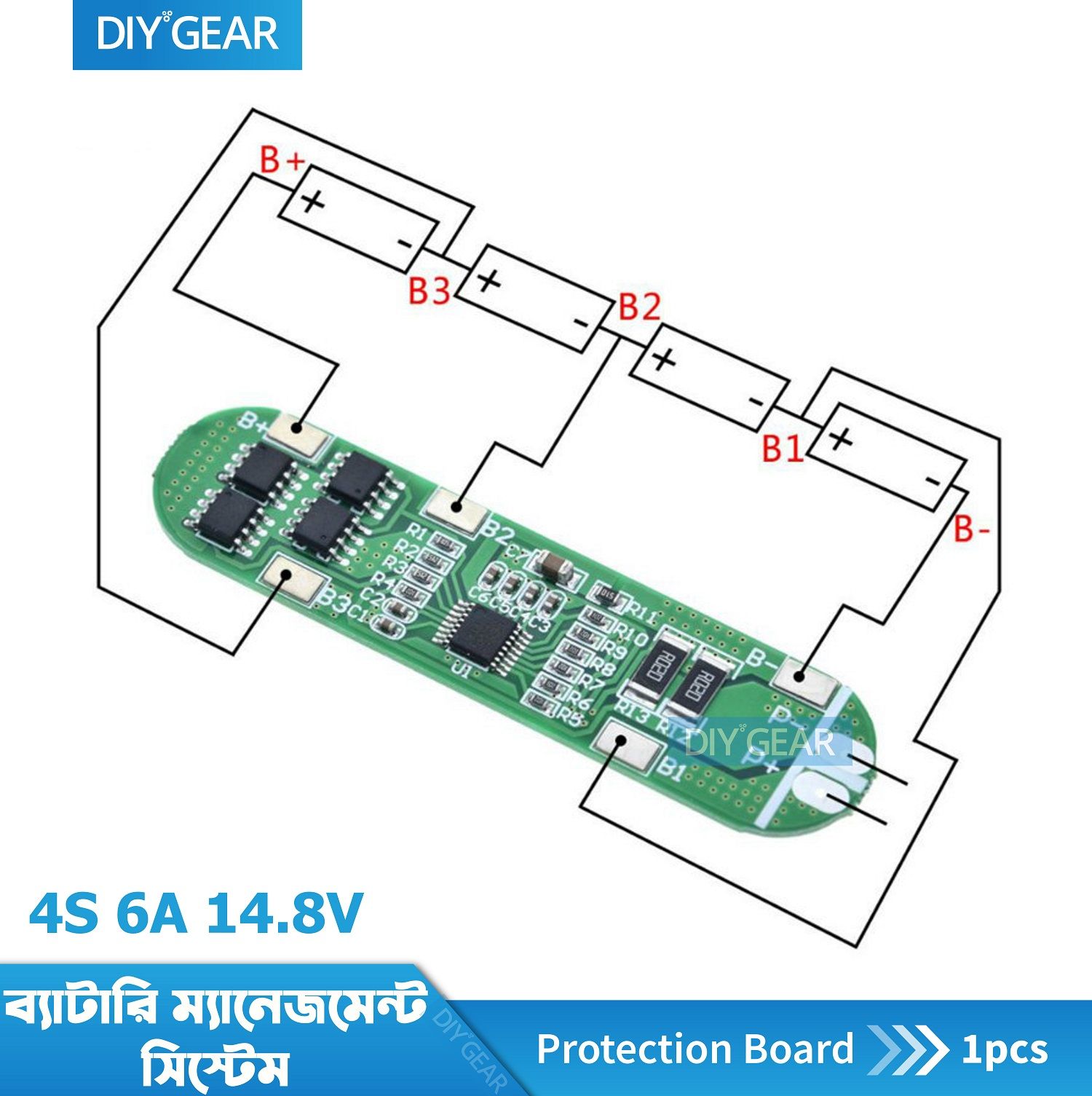

4S 6A 14.8V BMS Protection Board For 4 Pack 18650 Battery Cell
- Charging Voltage: 16.8V-17V
- Overcharge Voltage Range: 4.25V-4.35V ± 0.05V
- Overpressure Voltage Range: 2.3V-3.0V ± 0.05V
- Upper Limit Operating Current: 6-8A
- Upper Limit Instantaneous Current: 12A
- Quiescent Current: less than 30uA
- Internal Resistance: less than 100mΩ
- Effective Life: more than 50,000 hours
- Operating Temperature: -40- +50 degrees
- Storage Conditions: -40- +80 degrees
- Size: 72* 17* 3mm
