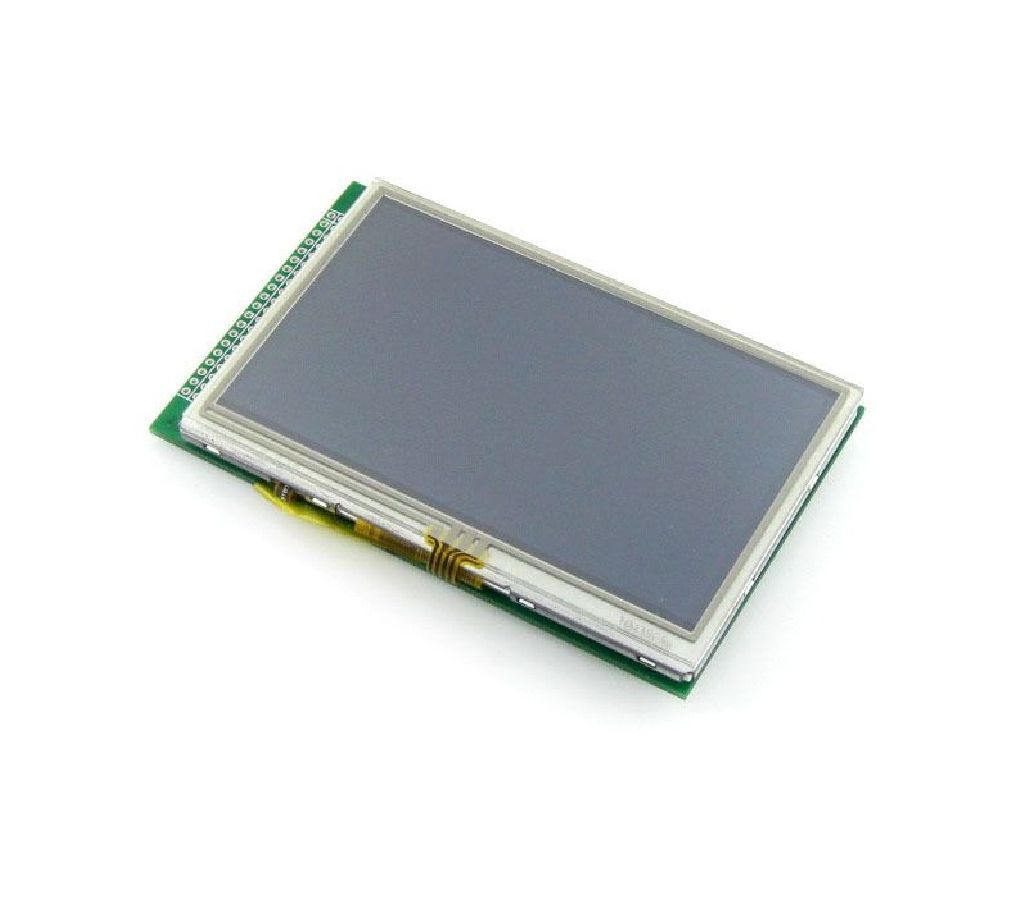

5.0 TFT LCD module Display with touch panel
5.0 inch TFT LCD module ডিসপ্লে উইথ টাচ প্যানেল
5 Inch 800*480 TFT LCD MCU Interface Display Module
Description:
Strong anti-interference ability. The module uses the driving scheme of CPLD + SDRAM, which far more superior than SSD1963 and RA8875. Solve the problem of bad immunity, death and white screen from SSD1963.
Good simplicity. Not need an initializer, what have to do is reset can start work. You can use 5 register command to control it. Greatly simplifies the program code, reduce degree of difficulty of debugging the program and error probability.
Fast speed. The respond speed of W/R cycle can be up to 200ns. The fastest full screen refresh rate is 13 frames. 8M SDRAM correspond to 8 pages display cache. The display registers and RW one is set independently. Display page and RW page also can be in which data can be written in the background. Just using one command to change screenful display data instantly. Far more superior than RA8875.
Good display effect. TFT drive timing and circuit design have been optimized to ensure accurate color reduction, display a stable, eliminate flicker or channeling color and offers LED backlight driver, you can adjust the brightness from 0 (off) to 16 (fully open).
Feature:
5 inch TFT LCD Display Module
Using CPLD + SDRAM drive RGB interface display (far more superior than SSD1963 and RA8875)
8080 timing 16-bit parallel bus interface
Resolution 800 x 480
16M color display
Integrated 8 page memory (can be used as extended memory when redundant)
Background write data
No need to initialize
Support 51, AVR, STM32 and other types SCM drive directly
Provides a series of practical features when convert between bus and RGB interface
Interface Definition:
Num. Name Description
1 GND Ground
2 3.3V Positive power supply 3.3V
3 NC Empty
4 RS data / command switch
5 WR Write Data Clock
6 RD Read Data Clock
7-14 DB8-DB15 Upper 8-Bit Data Bus
15 CS Chip Select
16 F_CS FLASH Chip Select (module aside FLASH chip W25X16, default is not a
