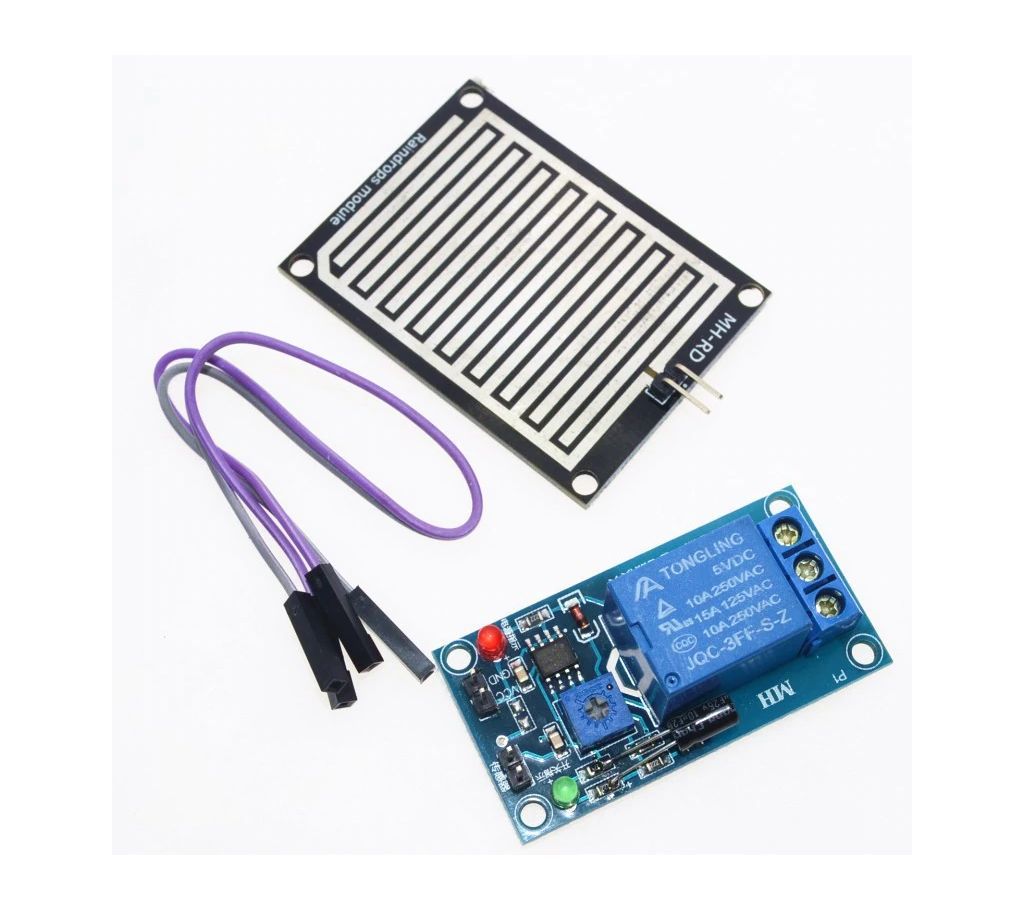

5V LED Rain Sensor Raindrops Water Detection Humidity Moisture Module
Features:
1. TTL level output, TTL output valid signal for low level.
2. The sensor uses a high -quality double-sided FR-04 materials and nickel -plated surface , effectively against oxidation, conductivity, superior performance and long life.
3. Driving capacity is about 100MA, can directly drive relays, buzzers, small fans, and so on.
4. Power indicator, output signal LED indicator.
5. The board has positioning holes for you to install.
Description:
1.AO analog output, you can connect the AD port of the microcontroller to detect the amount of rainfall on the top.
2.Sensitivity can be adjusted by potentiometer.
3.Large area raindrops are more conducive to detecting rainwater.
Specification:
Color:blue
Driving capacity: Approx.100mA
Working voltage:5V
Size: 53 x 39mm
Weight:6g
Package Information:
Package size:98 x 70 x 30mm/3.86 x 2.76 x 1.18in
Package Weight: 13g/0.47oz
Polybag Package
Package Included:
1 x Raindrop Module With Cable
