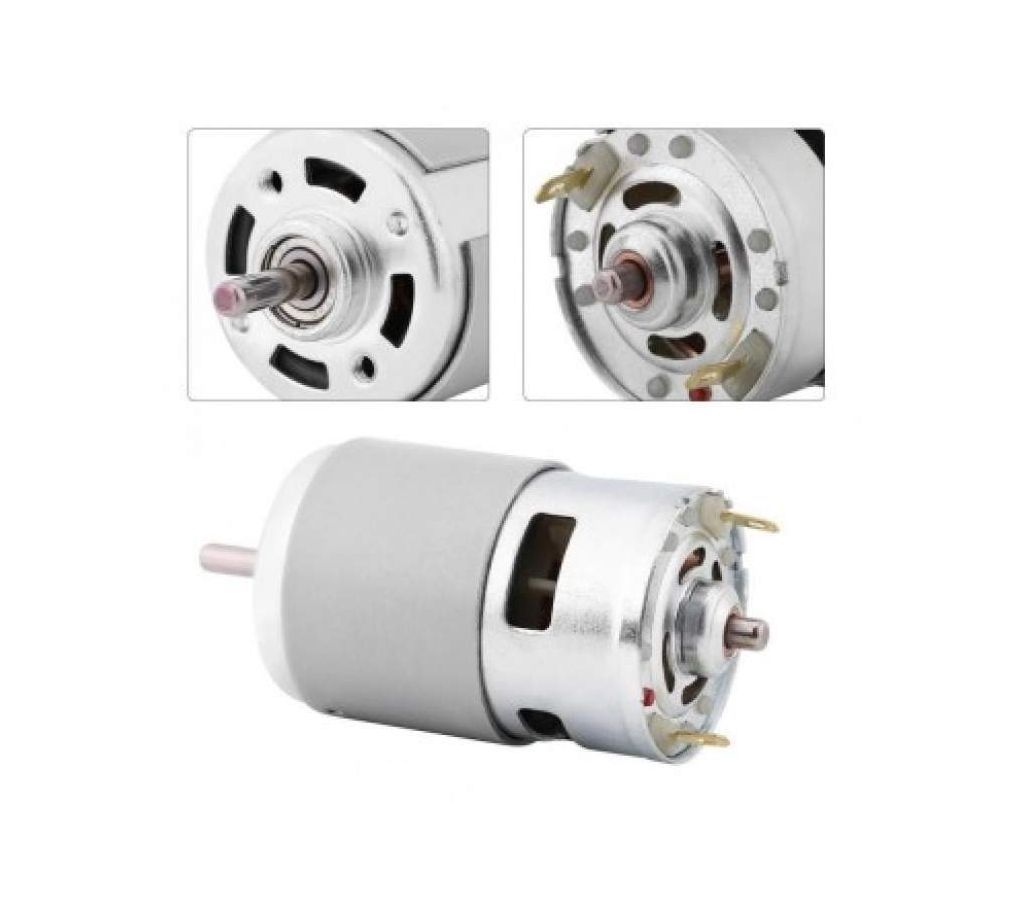

775 Motor DC 12V-18V 3500-14000RPM Motor Large Torque
775 Motor DC 12V-18V 3500-14000RPM মোটর Large Torque
Specification:
Model 775
Shaft Diameter 5mm
Shaft length 17mm
Body length 66.7mm
Front steps diameter 17.4 mm
Former high level 4.7 mm
Body diameter 42 mm
Motor Overall Length 98 mm
Diagonal installation pitch 28.8 mm
Mounting hole size M4
Mounting hole 2
Torque 2kg.cm or 0.2N.M
