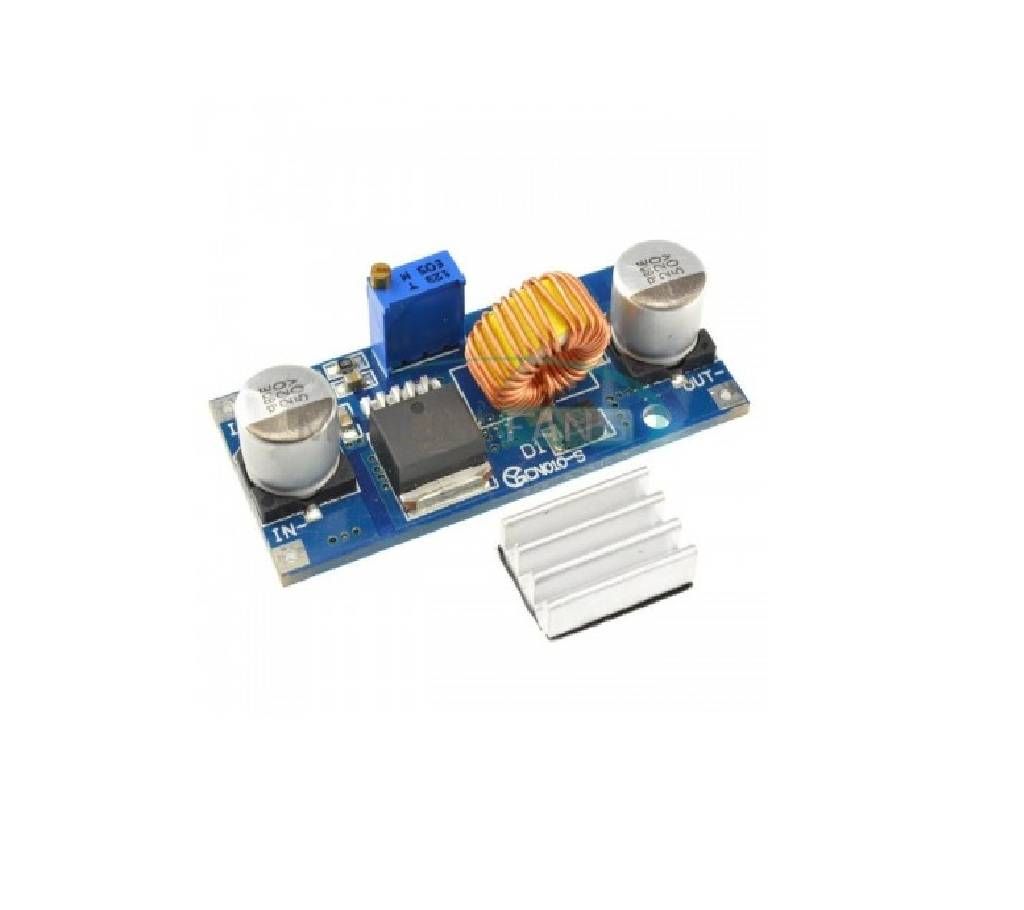

Adjustable DC to DC 5A Step Down Converter
Adjustable DC to DC 5A স্টেপ ডাউন কনভার্টার
XL4015 DC DC 5A Step Down Adjustable
Input voltage range:4～38VDC(Note:input voltage not exceeding 38V)
Output voltage range:1.25-36VDC adjustable
Output current: 0-5A, recommended for use in 4.5A. 4.Output power: 75W
Working temperature: -40~+85 degrees
Operating frequency: 180KHz
Efficiency:96%(max)
Short circuit protection: yes(limit current 8A).
Over temperature protection
Input reverse polarity protection: None (if required, high current diode in series with the input). 11.L x W x H = 54 * 23 * 18mm Application: The DC/DC buck module applications the input voltage is higher than the output voltage of the buck field, such as battery, power transformer, DIY adjustable regulated power supply, 24V Vehicle notebook power supply,industrial equipment buck.12V buck to 3.3V, 12V buck to 5V, 24V buck to 5V,24V buck to 12V, 36V buck to 24V etc.
