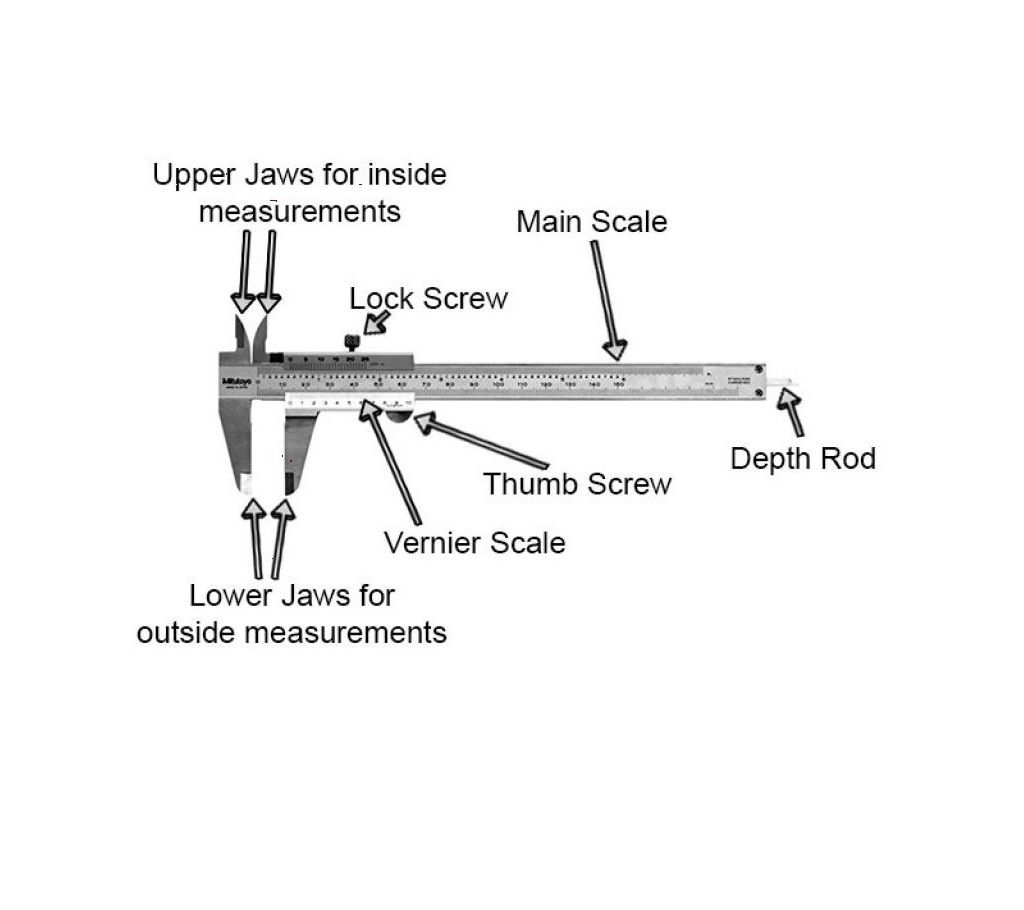

Analog Vernier Caliper
এনালগ ভার্নিয়ার ক্যালিপার
Product Description
Assisted by a team of talented technicians, we are able to offer Vernier Caliper as per the requirements of the customers.
This instrument provides three basic functions of inner, outer and depth gauge by reading the measurement from the same scale.
Further the measurement is done by setting the vernier caliper over the object
Analog Vernier Caliper Main Scale
The main scale runs along the beam of the caliper. On a metric vernier caliper, the main scale is graduated in centimetres (cm) and millimetres (mm).
On an imperial vernier caliper, the main scale is graduated in inches, with each inch divided into increments of a tenth of an inch (0.1 inch).
Vernier Caliper Scale
The vernier scale adds an extra degree of accuracy to measurements. On the vernier scale, the smallest increment on the main scale is further divided.
The metric vernier scale is divided into 50 equal parts. The measuring range of the vernier scale is usually 1mm, with each increment representing 0.02mm.
On an imperial caliper with a main scale of 6 inches, the vernier scale is 0.6 inch long, and is divided into 25 parts. Each increment has a length of 0.001 inch.
Vernier Caliper Thumb Screw
The thumb screw is used to precisely adjust the measuring faces of the caliper (both sets of jaws and the depth rod).
It helps the user to get a tight grip on the material they are measuring.
Vernier Caliper Lock Screw
The lock screw secures the jaws into place, so the object you are measuring can be removed, and readings taken.
