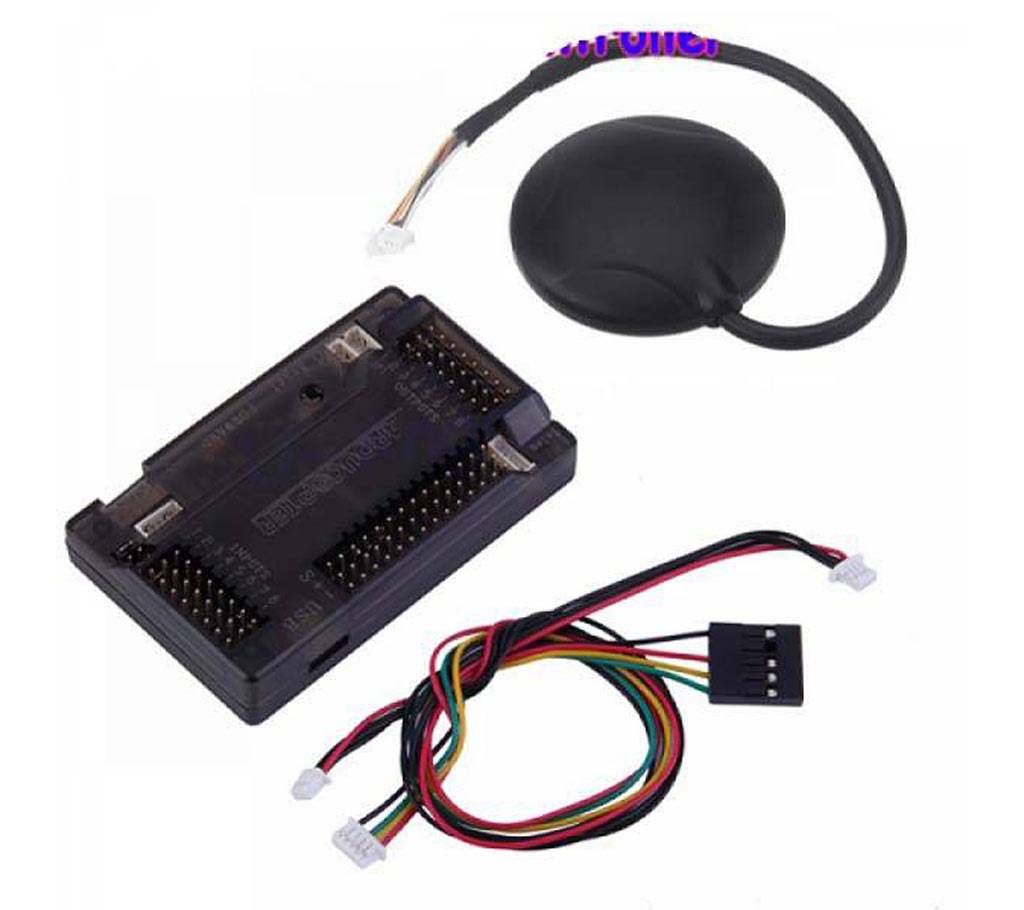

APM2.8 Flight Controller with NEO-6M GPS Module
APM2.8 ফ্লাইট কনট্রোলার উইথ NEO-6M GPS Module
APM2.8 Flight Controller + CRIUS NEO-6M GPS Module + Power Module APM2.6 Updated.
APM2.8 Flight Controller, newest APM version, with Shock Absorber designed
Arduino Compatible
Includes 3-axis gyro, accelerometer and magnetometer, along with a high-performance barometer
Onboard 4 MegaByte Dataflash chip for automatic datalogging
One of the first open source autopilot systems to use Invensense's 6 DOF Accelerometer/Gyro MPU-6000.
Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties.
Atmel's ATMEGA2560 and ATMEGA32U-2 chips for processing and USB functions respectively.
NEO-6M GPS With Compass
Features:
u-blox NEO-6M GPS module
10Hz update rate
Build in 25 x 25 x 4mm ceramic patch antenna
LNA and SAW chip
3.3V LDO low noise regulator
UART (TTL) port with EMI protection
3V Rechargeable Backup Capacitors
Fix indicator LEDs
Reverse polarity protection for input power
Default parameter
NMEA protocol
Baud rate : 9600
Nav rate : 1Hz
TIMEPULSE (fix LED) rate : 1Hz
Crius Power Module
Features:
Input voltage: 6~28V (support 30V)
Max current sensing: 90A
Voltage and current measurement configured for 5V ADC
Switching regulator outputs 5.3V±0.1V and 3A max
6P molex cable plugs directly to APM/Arduflyer
Dimension(mm): 25 x 21 x 9
Weight(g): 17(include all wire)
Package includes:
1x APM2.8 FC with Shock Absorber
1x NEO-6M GPS module
5x JR jumper wire 10cm
