In The Box

N/A: N/A

General

brand: arduino

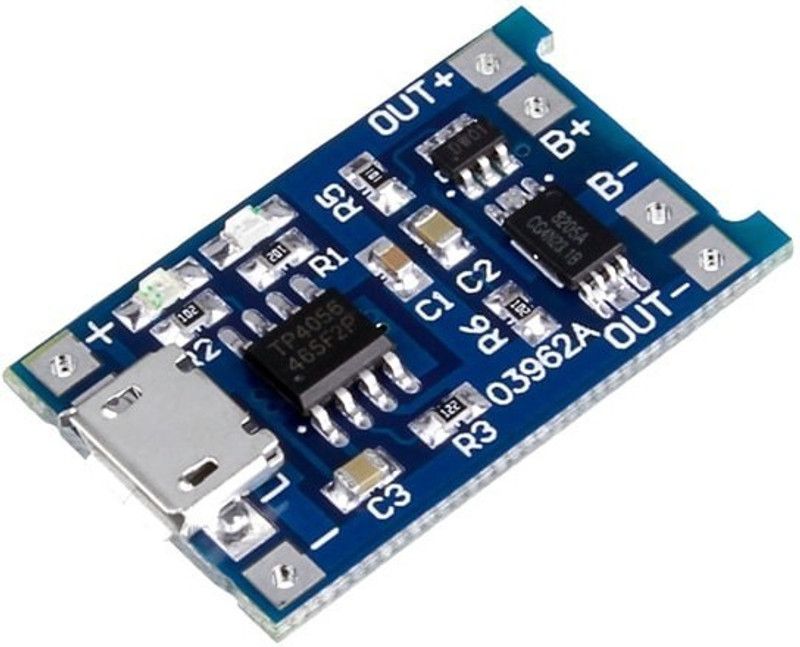

Model Number: TP4056 PROTECTION MODULE

Type: Power Supply

Minimum Age: 5

ROHS Complaint: Yes

Material: Fiber

Additional Features

Other Features: Programmable Charge current up to 1000mA, Complete Linear Charger in SOP-8 Package for Single cell Lithium ion Batteries, Constant-current / Constant-Voltage Charges Single cell Li-Ion Batteries di, Preset 4.2V Charge Voltage with 1.5% Accuracy, Automatic Recharge, 2.9V Trickle Charge Threshold (TP4056), Soft-Start Limits Inrush Current, Available radiator in 8-Lead SOP Package., It can be used for voltages 3.6V, 3.7V etc. 18650, polymer, and other lithium battery charge and discharge protection., Input Voltage 5V, Charging cut-off Voltage : 4.2V +/- 1%, Maximum Charge current : 1000mA, Battery Over discharge protection voltage: 2.5V, Battery over current protection : 3A, LED Indicator : Red is charging and blue is fully charged

Dimensions

Width: 1 cm

Height: 1 cm

Other Dimensions: 0.1X0.2

Weight: 45

Power Features

Battery Type: Lithium

No Of Batteries: 1

Battery Size: 5V DC

Power Source: DC

Power Consumption: USB 5V 1A

Other Power Features: LED Indicator : Red is charging and blue is fully charged, Battery over current protection : 3A, Battery Over discharge protection voltage: 2.5V, Maximum Charge current : 1000mA, Charging cut-off Voltage : 4.2V +/- 1%, Input Voltage 5V, Automatic Recharge, Preset 4.2V Charge Voltage with 1.5% Accuracy, Charges Single cell Li-Ion Batteries directly from USB Port, Complete Linear Charger in SOP-8 Package for Single cell Lithium ion Batteries, 2.9V Trickle Charge Threshold (TP4056)
