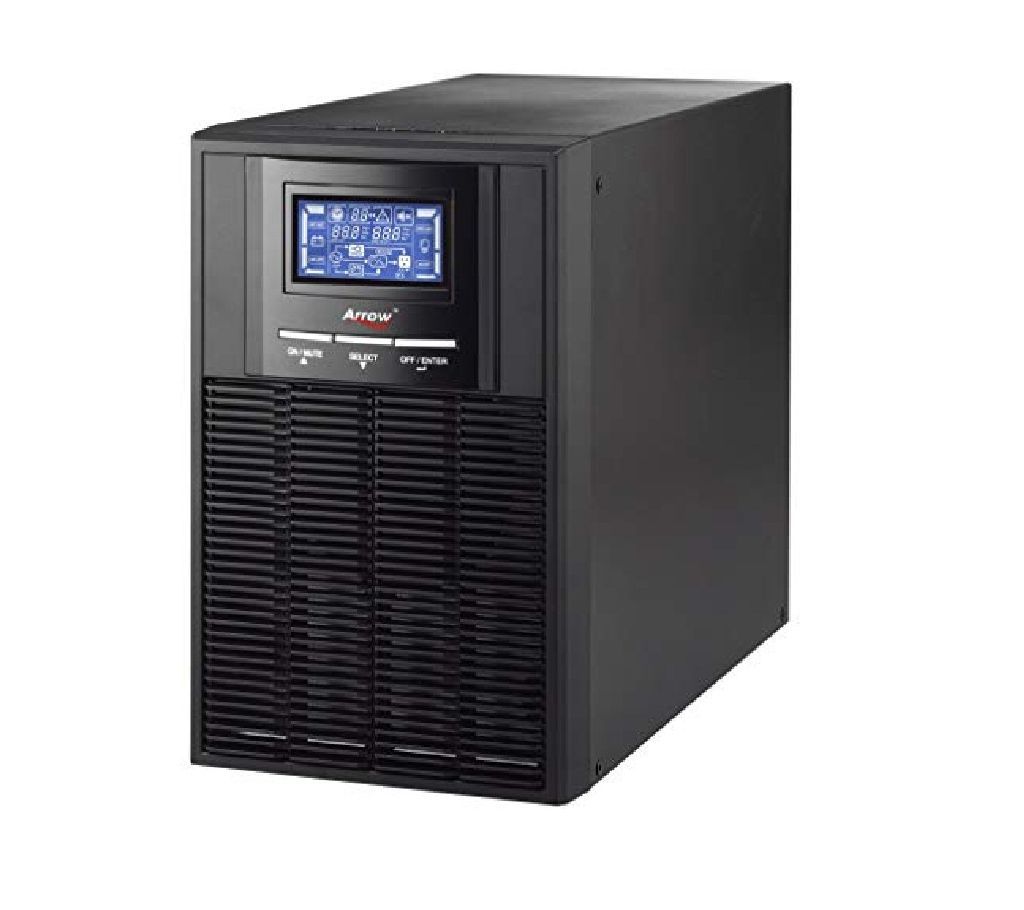

Arrow 3KVA Online-UPS
DESCRIPTION
Item Description
Brand Arrow 2KVA Online-UPS
Country of Origin India
MODEL GT
OUTPUT PARAMETERS
Capacity 3KVA
Power Factor 0.8
Nominal Voltage 220 / 230 / 240 Vac
Voltage regulation 1%
Frequency range – Hz 47 Hz-53Hz or 57 Hz-63 HZ
Frequency Range battery mode 50 Hz or 60 Hz +/-1%
Creast Factor 3:1 max.
Harmonic distortion <= 3% THD(Linear Load)
AC – AC Efficiency 92%
Battery Mode Effeciency 88%
Transfer time 0 millisec
INPUT PARAMETERS
Configuration 1 phase, L-N + PE
Nominal Voltage 230V
Voltage range 110V-280V @ 50% load
Frequency range – Hz 40 – 70 Hz
Power Factor >=0.99@ nomonal voltage(100% load)
BATTERY PARAMETERS
Type maintance fee lead acid battery
Backup Time 60 min
Battery Capacity 18Ah
USE In Battery 12Volt*6=72V
ENVIRONMENTAL PARAMETERS
Operating temperature 0 to 40 deg. centigrade
Storage temperature -20 to 50 deg. centigrade
Noise level <45db @ 1 meter
MECHANICAL PARAMETERS
Depth X Width X height (mm) 282 x 145 x 220
Weight(UPS) 9Kg
Colour / Panel finish Black
Protection IP20
Communication Port RS232, USB
EPO (Emergency Power off Mode) Yes
MONITORING SOFTWARE SNMP(optional), dry contact card,
UPSilon 2000
STANDARDS
EMI EN 62040-2: 2006
SAFETY EN 62040-1-1: 2003
PERFORMANCE (technical feature) IEC / EN 62040 – 3
MANAGEMENT
Smart Rs 232/USB Support widows 2000/2003/xp/vista/2008/linux/unix and MAC
