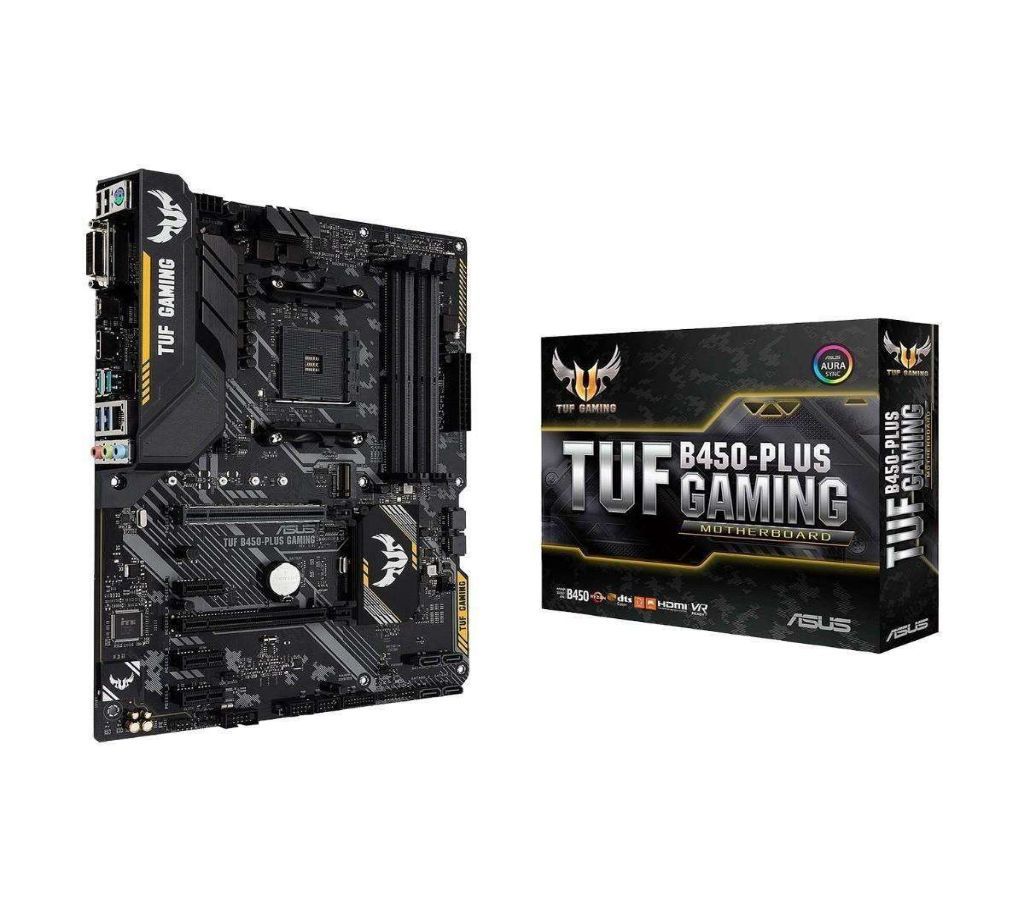

Asus TUF B450-PLUS GAMING DDR4 AMD AM4 Socket Mainboard
Asus TUF B450-PLUS GAMING DDR4 AMD AM4 সকেট মেইনবোর্ড
Form factor:ATX
Sockets :AM4
Chipset :AMD B450
Supported CPU :AMD Ryzen 1st and 2nd Generation / Ryzen with Radeon Vega Graphics Processors, Athlon with Radeon Vega Graphics Processors
RAM type :DDR4
RAM bus :3466(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133MHz
RAM max :64GB
RAM slot :4
PCI Express x16 slot :1 x PCIe 3.0/2.0 x16 (x16 mode), (x8 mode), (x4 mode), (max at x4 mode), 3 x PCIe 2.0 x1
SATA port :6 x SATA
Audio chipset :Realtek ALC887-VD2
Audio channel: 8-Channel
LAN chipset :Realtek RTL8111H
LAN speed :10/100/1000Mbps
USB Port :2 x USB3.1 Gen 2, 5 x USB3.1 Gen 1, 6 x USB2.0
DVI port :1
HDMI port :1
Others :1 x M.2 Socket 3, 1 x Aura RGB Strip Header, 1 x CPU Fan connector(s) (1 x 4 -pin), 1 x System panel(s), 1 x COM port header, 1 x Clear CMOS jumper(s), 3 x Audio jack(s)
Made in China
