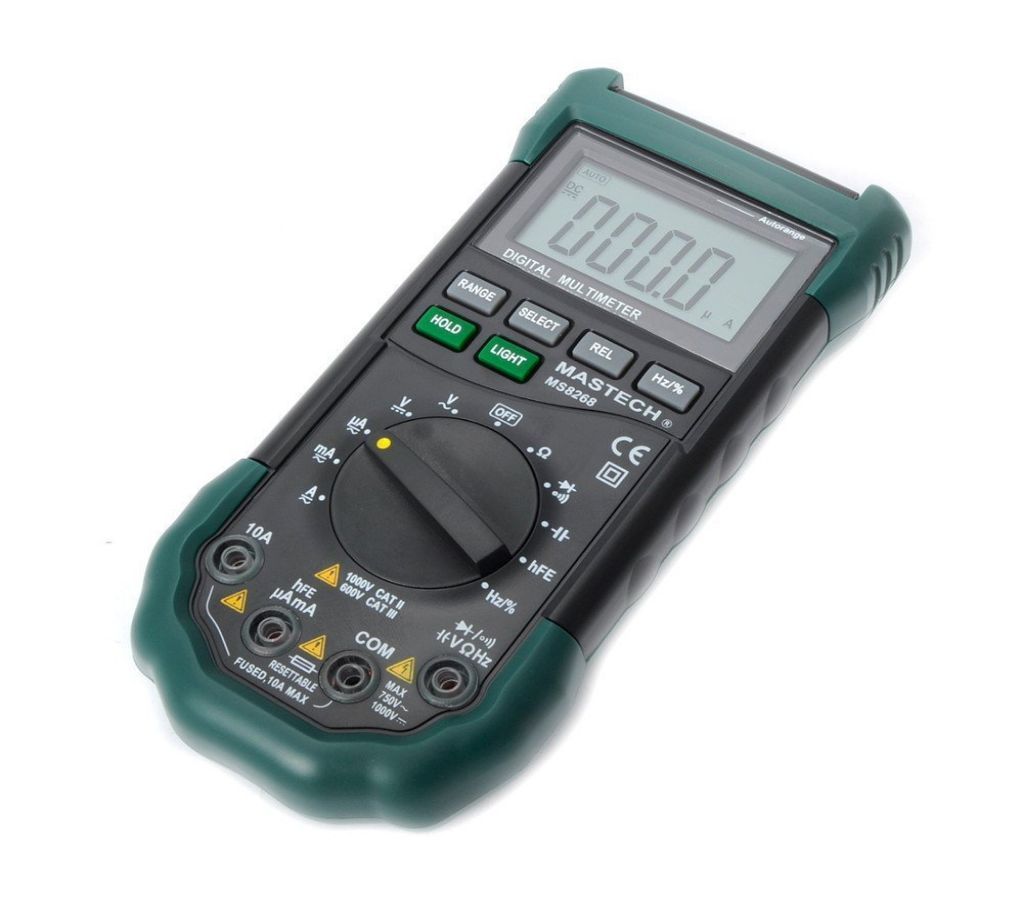

Auto MS8268 Digital Multi-meter
Auto MS8268 ডিজিটাল মাল্টিমিটার
Display: 3 3/4 digital large LCD with 4000 counts
Manual & Auto ranges
Data hold
Backlight
Full overload protection
Built-resettable fuse protection
Fuse Protection: mA and mA file: resettable fuse; 10A file: F 10A/250V 6.332mm
Misconnection alarm system
Red lights to show the correct terminals
Audible warning for over-range
"Sleep mode", auto power off & low battery indication
Unit symbol display
Continuity test
Diode test
Duty Cycle Measurement
Relative value measurement
Specifications
Display: 3 3/4 digits LCD with 4000 counts
Sampling Rate: approx. 3 times / second
Test Leads: 1KV 10A
Safety Standards: IEC1010-1, CAT. III 600V & CAT. II 1000V
Operating Temperature: 0 ~ 40°C (32 ~ 104 °F)
Operating Humidity: below 80% RH, less than 10°C non-condensing
Storage Temperature: -10 ~ 60 °C (14 ~ 140 °F)
Storage Humidity: below 80% RH
Power: 3 x 1.5V AAA batteries (Not Included)
Specification
Range
Accuracy
MS8265
MS8268
MS8269
DC Voltage
200mV/2V/20V/200V/1000V
±(0.1% +5)
±(0.5% +2)
400mV/4V/40V/400V/1000V
±(0.7% +2)
AC Voltage
2V/20V/200V/750V
±(0.8% +15)
±(0.8% +3)
400mV/4V/40V/400V/750V
±(0.8% +3)
DC Current
2mA/20mA/200mA
2mA/200mA
±(0.5 % +10)
200mA
±(1.5 % +1)
400µA/4000µA/40mA/400mA
±(1.2% +3)
10A
±(2.0 % +20)
±(2.0 % +5)
±(2.0 % +5)
AC Current
2mA/200mA
±(1.2 % +20)
200mA
±(1.8 % +3)
400µA/4000µA/40mA/400mA
±(1.5 % +5)
10A
±(2.5% +50)
±(3.0 % +7)
±(3.0 % +7)
Resistance
200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ
±(0.5% +5)
±(0.8% +3)
200 MΩ
±(5% +20)
400Ω/4kΩ/40KΩ/400KΩ/4MΩ
±(1.2% +2)
40MΩ
±(2.0% +5)
Capacitance
2nF/20nF/200nF/2µF/20µF
20nF/200nF/2µF/20µF/200µF
±(4% +20)
20nF/200nF/2µF/200µF
±(4% +8)
4nF/40nF/400nF/4µF/40µF/200µF
±(3% +3)
Frequency
0~ 20KHz
±(1.5% +15)
0~ 200KHz
±(2.0% +5)
Duty Cycle
5%~ 95%
±(2% +2)
Inductance
20mH/200mH/2H/20H
±(3% +8)
Temperature(C)
-20C~ 1000C
