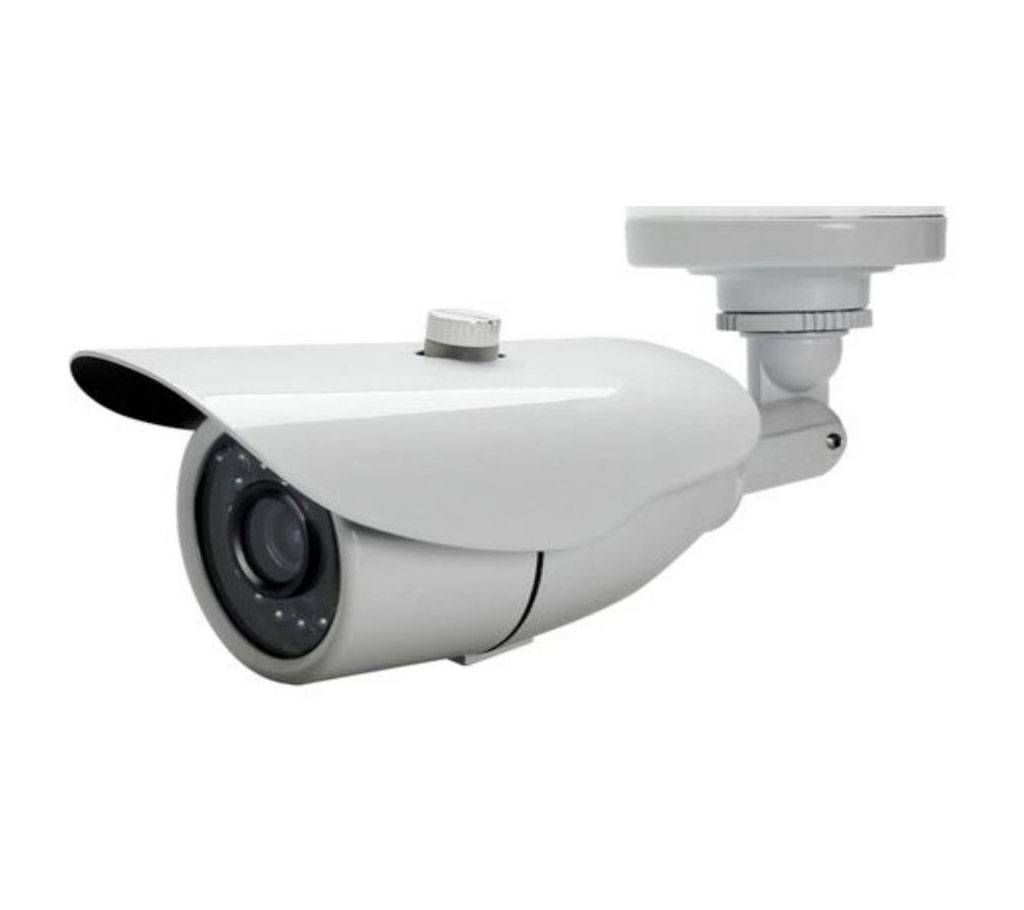

Avtech CCTV DG205
Avtech CCTV ক্যামেরা
1/2.7” CMOS Sensor
1080P video output
Low light sensitivity of 0.1 Lux / F1.4(Wide)~F2.8(Tele), 0 Lux (IR LED ON)
Day and night 24-hour surveillance with IR effective distance up to 25 meters
IP66 for weather-proof application
Pick-up Element 1/ 2.7” CMOS image sensor
Number of Pixels 1930(H) x 1088(V)
Video Frame Rate 1080P@30fps / 1080P@25fps
Min. Illumination 0.1 Lux / F1.4(Wide)~F2.8(Tele), 0 Lux (IR LED ON)
S/N Ratio More than 48dB (AGC OFF)
Shutter Speed 1/30 (1/25) sec ~ 1/720000 (1/600000) sec
Lens f2.8 ~ 12mm / F1.4 ~ F2.8
Lens Angle Wide: 104° (Horizontal) / 56° (Vertical) / 124° (Diagonal)
Tele: 35° (Horizontal) / 20° (Vertical) / 40° (Diagonal)
IR LED 36 units
IR Effective Distance Up to 25 meters
IR Shift YES
Day & Night Mode YES
IRIS Mode AES
White Balance AUTO / USER / PUSH / 8000K / 6000K / 4200K / 3200K
AGC Adjustable
Sharpness Adjustable
Flickerless 50HZ / 60HZ / OFF
BLC Adjustable
IP Rating IP66
Operating Temperature -25℃ ~ 50℃
Operating Humidity 90% or less relative humidity
Power Source (±10%) DC12V / 1A
Current Consumption (±10%) 180mA (IR OFF) / 490mA (IR ON)
Countery of origin Taiwan
