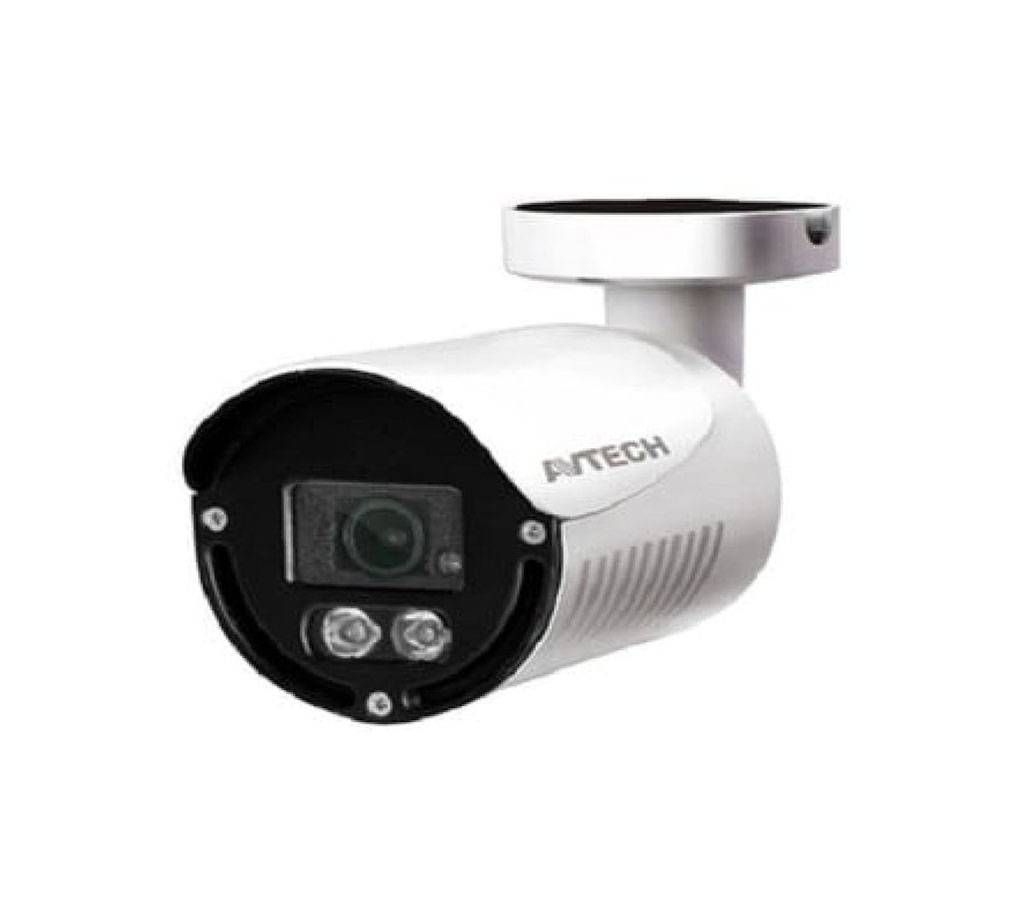

Avtech DGC1105
Avtech CCTV ক্যামেরা
1.2.7 High Performance CMOS Sensor,
2 Unit Solid IR LED so Effetive IR Distance 25 Meter,
Smart IR,
3.8 MM Lens
HD-TVI Output at 1080P Full HD
Pick-up Element/ Sensors : 1/ 2.7” CMOS Image sensor
Number of Pixels 1930(H) x 1088(V)
Video Frame Rate 1080P@30fps / 1080P@25fps
Min. Illumination 0.1 Lux / F1.8, 0 Lux (IR LED ON)
S/N Ratio More than 48dB (AGC OFF)
Shutter Speed 1/30 (1/25) sec ~ 1/720000 (1/600000) sec
Lens f2.8mm / F1.8 f3.6mm / F1.8
Lens Angle 118° (Horizontal) / 65° (Vertical) /
136° (Diagonal)
89° (Horizontal) / 46° (Vertical) /
108° (Diagonal)
IR LED 2 units
IR Effective Distance Up to 25 meters
IR Shift YES
Day & Night Mode YES
IRIS Mode AES
White Balance AUTO / USER / PUSH / 8000K / 6000K / 4200K / 3200K
AGC Adjustable
Sharpness Adjustable
Flickerless 50HZ / 60HZ / OFF
BLC Adjustable
External Alarm I/O YES (1 in / 1 out)
IP Rating IP66
Operating Temperature -25℃ ~ 50℃
Operating Humidity 90% or less relative humidity
Power Source (±10%) DC12V / 1A
Current consumption (±10%) 180mA (IR LED OFF) / 460mA (IR LED ON)
Net Weight (kg) (±10%) 0.36
Country Of Origin Taiwan
