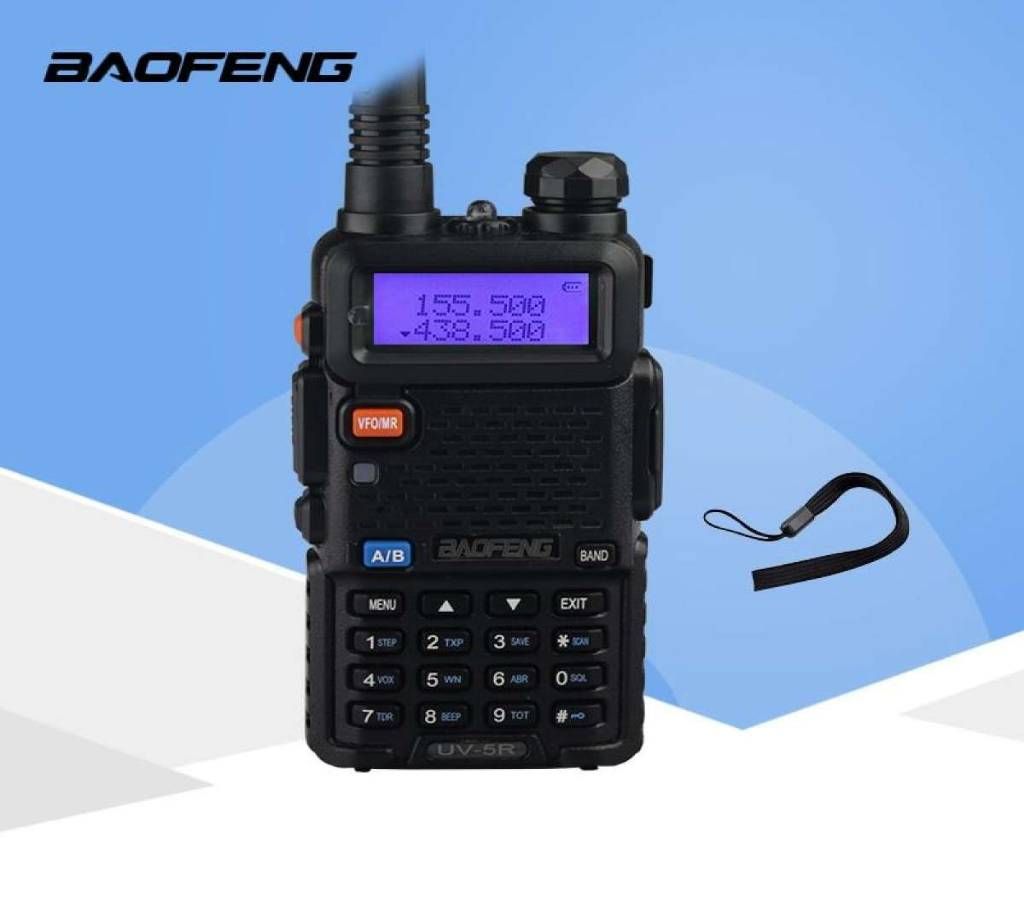

Baofeng UV5r - Walkie Talkie
Dual-band handheld transceiver with display function menu on the display "LED"
Commercial FM radio receiver (65MHz-108MHz)
Built-in LED flashlight DTMF encoded
Built-in RX CTCSS/DCS scan Function
VOX Alarm function
Broadband/narrowband selectable
Function beep on the keyboard
Dual Watch/dual Reception
Crossband reception/transmission
Function OFFSET Tone end of transmission
Battery saving function SAVE
Programmable by PC
Built-in key lock
GENERAL
Frequency range
65-108Mhz(only for FM)
VHF:136-174Mhz(Rx/Tx) UHF:400-520(Rx/Tx)
Memory channels
Up to 128 channels
Frequency stability
2.5ppm
Frequency step
2.5kHz/5kHz/6.25kHz/10kHz/12.5kHz/25kHz
Supply voltage
Rechargeable Lithium-Ion mAh7.4V/1800
Mode of operation
Simplex or semi-duplex
Duty cycle
03/03/54 min.(Rx/Tx/Standby)
Dimensions
58mm*110mm*32mm
Weight
130g(approximate)
TRANSMITTER
RF power
4W/1W
Type of modulation
FM
Spurious emissions
<-60dB
RECEIVER
Receiver sensitivity
0.2μV(at 12dB SINAD)
Intermodulation
60dB
Audio output
1000mW
Adjacent channel selectivity
65/60dB
