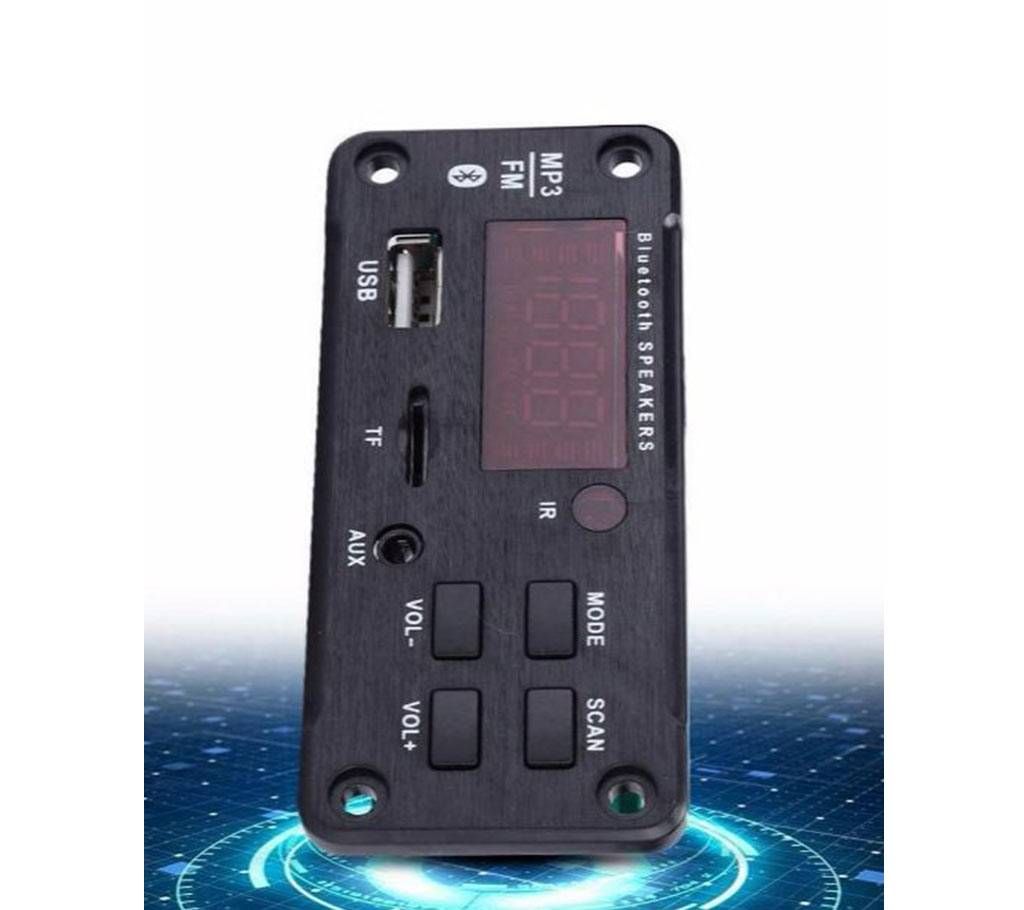

Bluetooth 5.0 Receiver Car Kit MP3 Player Decoder Color Screen FM Radio TF USB 3.5MM
ব্লুটুথ 5.0 রিসিভার কার কিট MP3 প্লেয়ার ডিকোডার কালার স্ক্রিন FM রেডিও TF USB 3.5MM
1.LED: digital color display, showing red, 4 colors;
2.IR: infrared receiving module;
3.MODE: Switching of USB / TF / FM / AUX / BLUETOOTH;
4.SCAN: short press is the switch between pause and play; short press auto search in the radio state;
5.USB: Connect USB drive (maximum support 32GB)
6.TF: Connect TF memory card (maximum support 32GB)
7.AUX: audio input interface
8.VOL-: Short press is to select the previous song; long press is to decrease the volume
9.VOL+: Short press is to select the next song; long press is to increase the volume
Specifications:
Master IC: Jerry 6926
Bluetooth IC: Jerry 6926 Bluetooth version is 5.0 version compatible with 2.1 version, version 3.0
Music format: MP3 / WMA / WAV / FLAC / APE lossless music format
Radio FM frequency: 87.5-107.5 MHZ
Support function introduction: support MP3/USB/TF/LINE IN/FM/BLUETOOTH/Remote Control/ DC 5V or 12V (optional)
About the structure: panel size:92*41MM,the depth of the board is 21MM
Package contents: 1 x Bluetooth MP3 decoder board 1 x Remote control (Not Bring the Battery)
