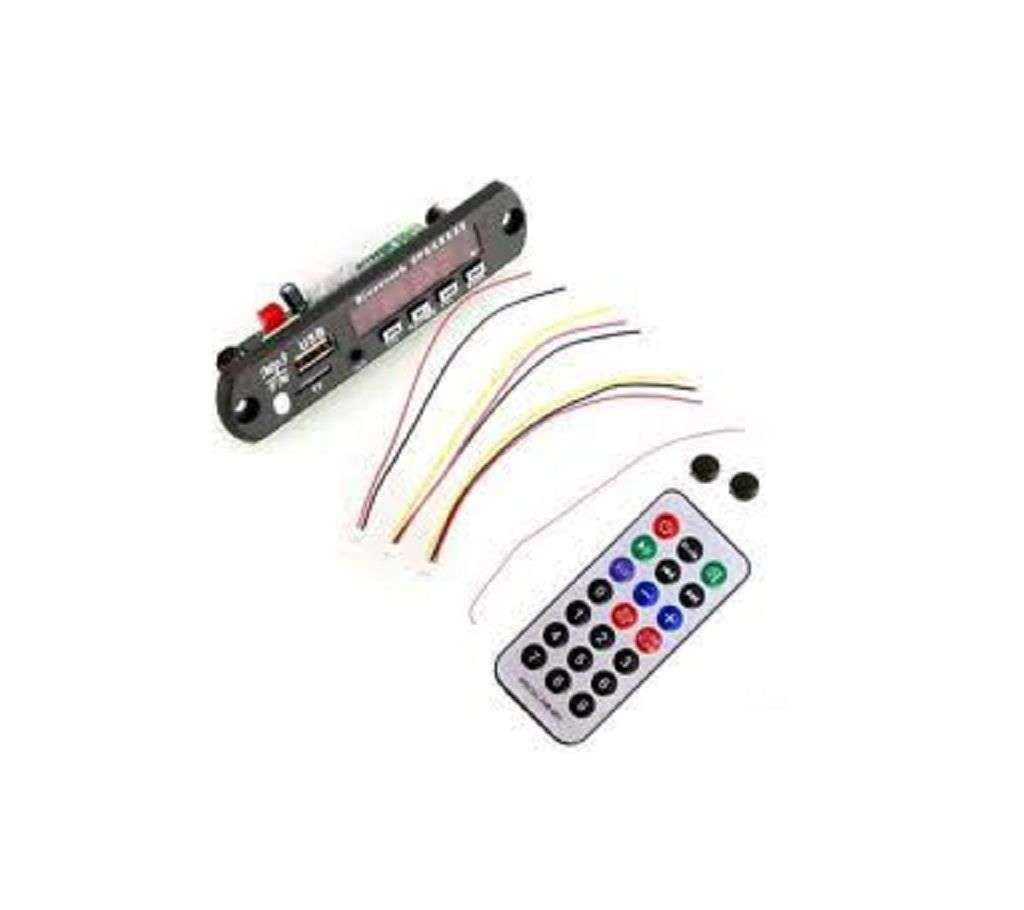

Bluetooth 5v MP3 With Radio JLH-BT66016E Decoder Board For Speaker
5v MP3 With Radio JLH-BT66016E ডেকোর বোর্ড ফর স্পিকার
1. size: 83*28*30mm
2. Central Hole Distance: 75mm
3. Support TF card orr U-disk playing
4. Power Supply Voltage:DC 5-12V
5. With 3pcs blue back-light LED lamp
6. Support FM/AUX, can control AUX input volume
Connection Introduction:
1. 5P socket back side mark connection: VCC connects with DC 5-12V power positive,GND connects with DC 12V power negative;
R connects with audio output port right;G connects with input port ground;L connects with audio output port left
