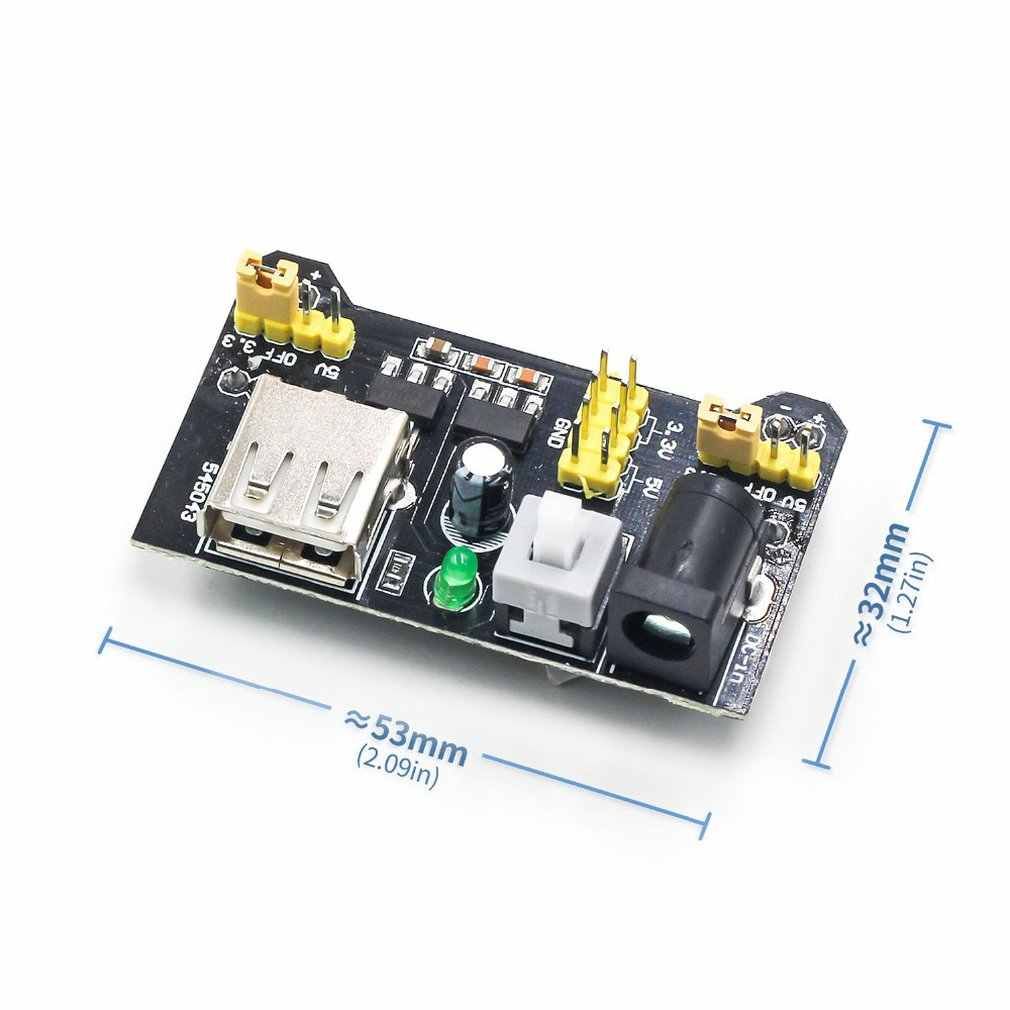

Breadboard Power Shield MB-102
- The module also offers a push switch to turn OFF and ON the entire power supply module.
- An additional feature is a USB input with two 5V, two 3.3V, and 4 GND pinout for additional power pin requirements.
- The power LED will notify the user of input power availability status.
- Input voltage: 6.5 – 12V
- Fit for: MB-102 Breadboard
- Two Independent Channel
- Output voltage: 5V, 3.3V (adjustable via jumpers. 0V, 3.3V, and 5V configuration)
- Output current: Maximum output current 700mA
- Onboard berg male header for GND, 5V, 3.3V output
- ON-OFF Switch available.
- USB (Type-A) input available.
- DC Barrel Jack input available.
- Onboard power LED
- Dimension: 53x 33mm
