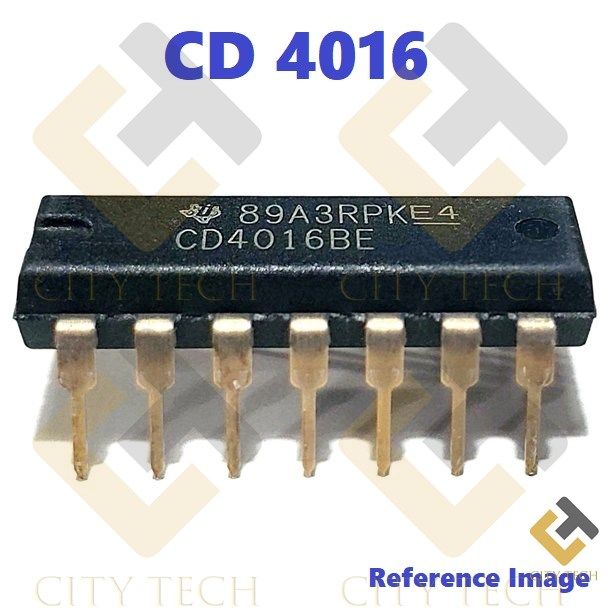

CD4016 IC 4016 DIP 14 Pin Electronics Components Parts
- Wide supply voltage range: 3V to 15V
- Wide range of digital and analog switching: ±7.5 VPEAK
- “ON” resistance for 15V operation: 400W (typ.)
- Matched “ON” resistance over 15V signal input: DRON = 10W (typ.)
- High degree of linearity: 0.4% distortion (typ.) @ fIS = 1 kHz, VIS = 5 Vp-p, VDD-VSS = 10V, RL = 10 kW
- Extremely low “OFF” switch leakage: 0.1 nA (typ.) @ VDD – VSS = 10V TA = 25°C
- Extremely high control input impedance: 1012W (typ.)
- Low crosstalk between switches: -50 dB (typ.) @ fIS = 0.9 MHz, RL = 1 kW
- Frequency response, switch “ON”: 40 MHz (typ.)
