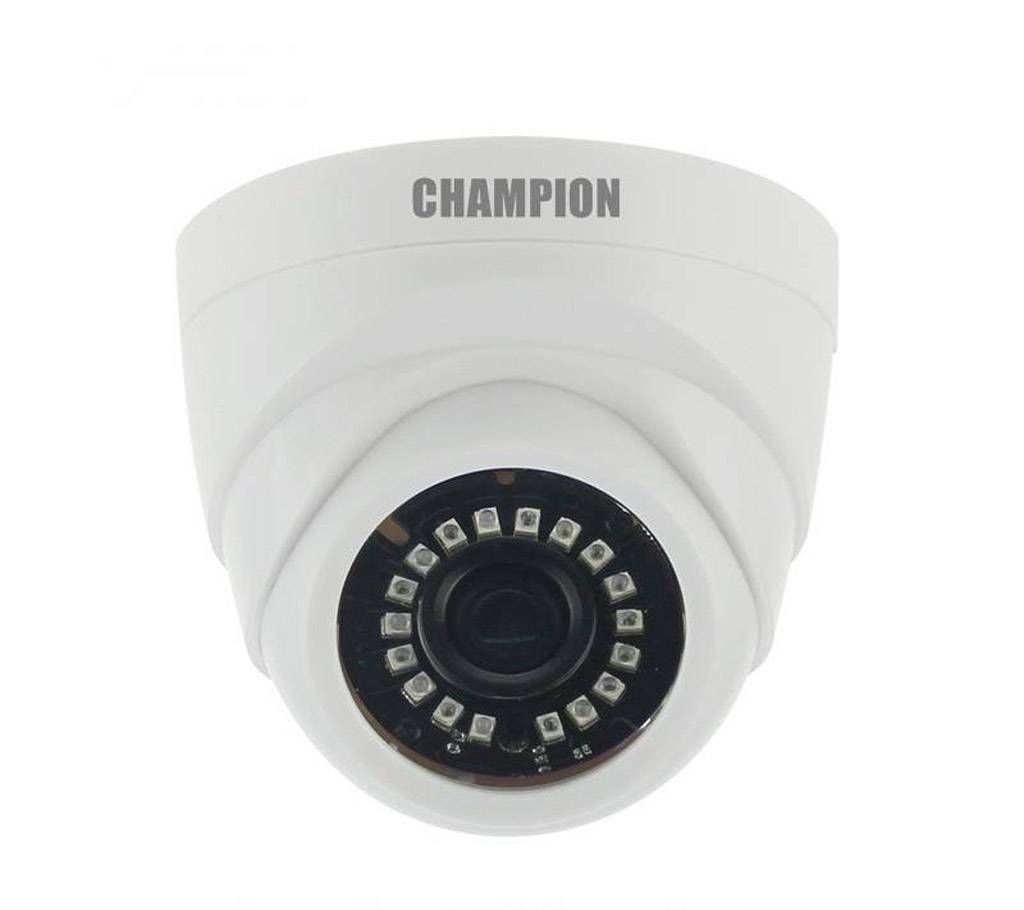

Champion CP-8330 2MP Dome Camera
Champion CP-8330 2MP Dome ক্যামেরা
Champion CP-8330 2MP Dome ক্যামেরা
Model: CP-8330
DSP EN773V
Image sensor: 1/2.8” SONY CMOS（IMX291）
Total Pixels: 1945(H)*1109(V) Approx.2.16M pixels
Effective Pixels: 1945(H)*1097(V) Approx.2.13M pixels
scanning system Progressive
Resolution: Digital:1920P(30fps),1080P(60fps)
Min-illumination Color:DSS:0.00008LUX,BW DSS:0.00008LUX
Video Output: Digital output: EX-SDI(1080P);Analog output: HD-AHD(1080P)
CVBS(960H)1Vp-p Composite Output(75 ohm/BNC)
S/N Ratio: More than 42Db(AGC off)
ACE & WDR Off/Low/Middle/High; WDR SNR:120Db
Lens: Motor/DC/Manual/fixed
Brightness: 0-20
AGC 0-20 steps
SESS-UP Off/X2/X4X/X8/X16/X32
Shutter Speed AUTO/MANUAL(1/50\60~1/60,000 sec)
Defog Off/on, Low. Middle/High
Shading Off/on
BLC Off/BLC
HLC Off/HLC
Day & night AUTO/COLOR/B&W/EXTERN
Color(AWB) AUTO/AUTO EXT/PRESET/MANUAL
Monitor 0/1/2/3
DNR Off/Low/Middle/High
Mirror Off/on
H-V-REV Off/on
Sharpness: 0-10 steps
Digital Zoom: 1.0x-16.0x
Motion Off/on,Alarm output
Privacy Mask: 24Masks
Languages: Chinese/English polyglot
power(max): supply DC12±10%﹤1.50W
Video output: EX-SDI & HD-AHD & CVBS
EX-SDI distances BNC cable 75-3 can transfer over 500meters
Warranty: 1 Year
