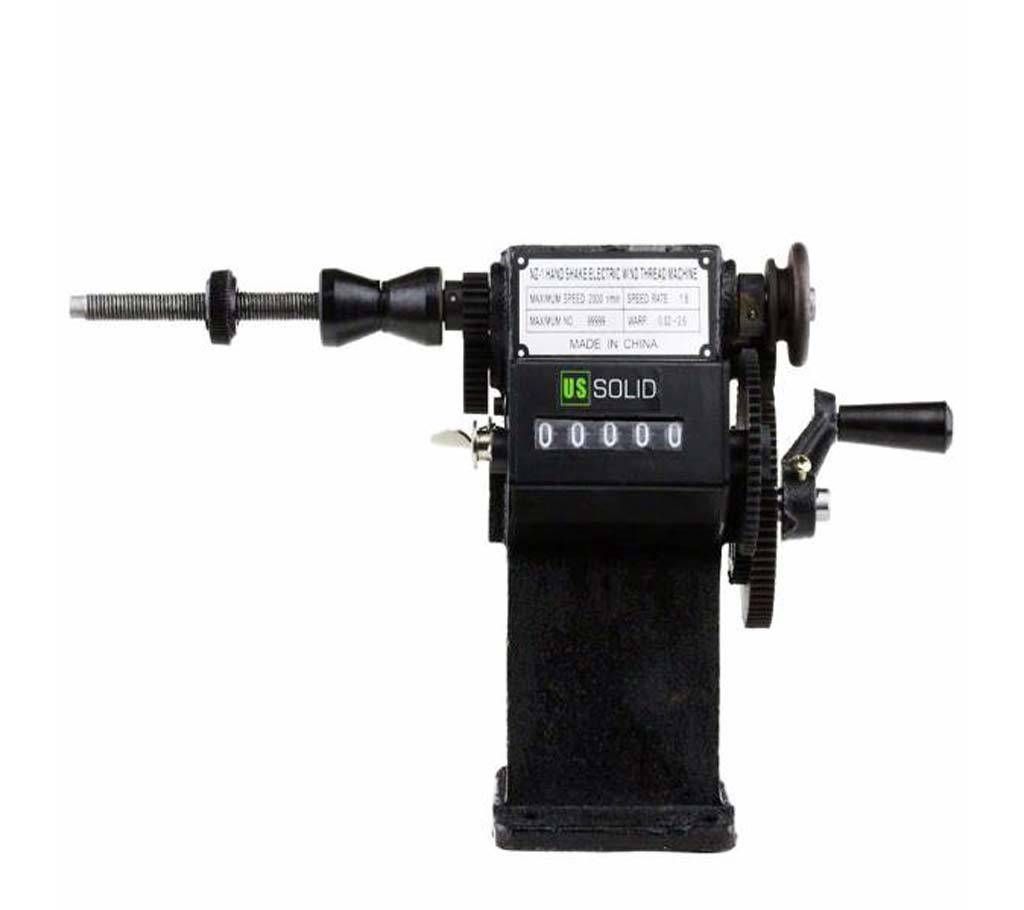

Coil Winding Machine
কয়েল উইন্ডিং মেশিন
Used for many types of winding applications;
Motor repair
Large size coil winding
Ham radio coils
Tesla Coils
Speaker or electronic workshops
Inductors
Tattoo Machines
Solid cast iron frame
Mountable Base (mounts to tables, benches or other surfaces)
Manual reset counter, reads up to 99999
2 gear ratios available for fast speed and low speed
Fast speed (1:8)
Low speed (1:1)
The gear ratios can be changed from 1:1 to 1:8 by simply changing the fly wheels over
Smaller fly wheel has a grove so that you may motorize it by adding a drive belt (motorized speed should be kept less then 1000 rpm)
Winds coils up to 150 mm in diameter
Coil length should not exceed 100 mm
