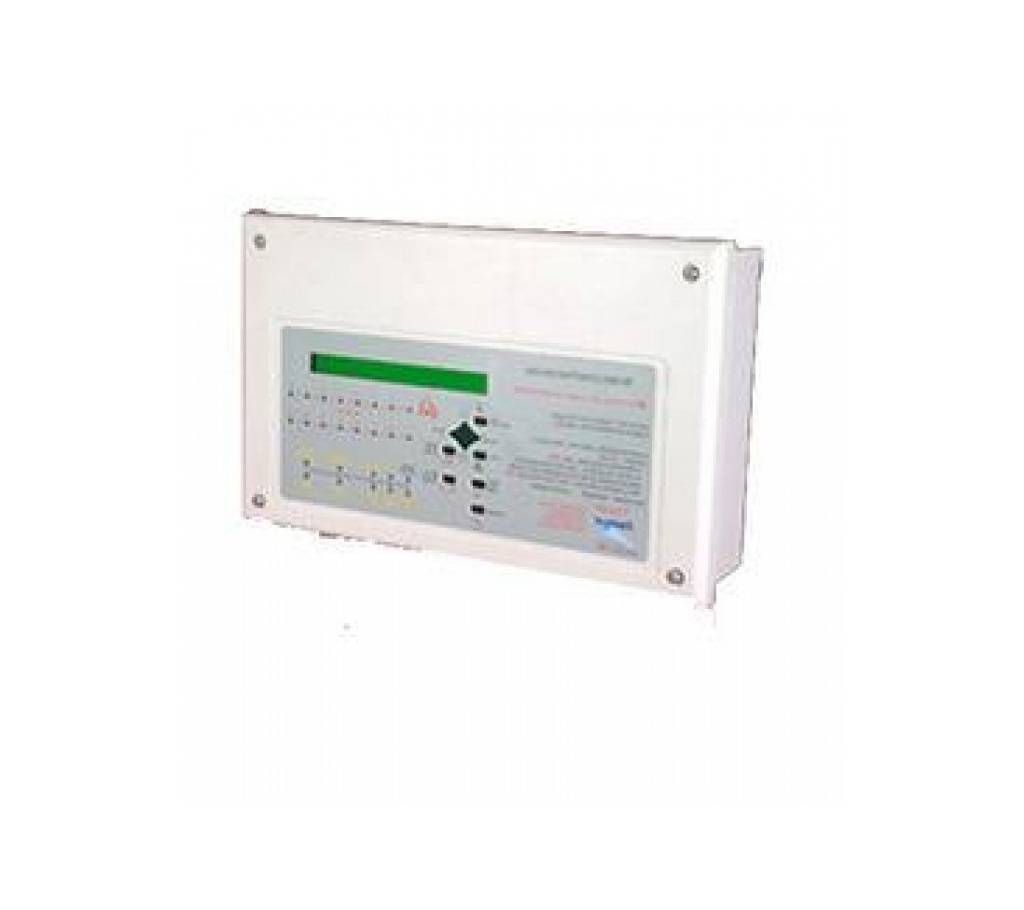

Context Plus XFP 501/X/CON 32 Zone Panel
Context Plus XFP 501/X/CON 32 জোন প্যানেল
Features of Context plus XFP501/X/CON Addressable Control Panel
Context plus XFP501/X/CON Addressable Control Panel
Third-party certificated to EN54 parts 2 and 4 by the LPCB.
Full compatibility
InterConnect Up To Eight XFP Main Panels
Four XFP Repeater Panels Per Main Two Wire RS485 Network.
Two Independently Programmable Conventional Sounder Circuits.
Two Programmable Inputs.
A Fault Output Relay & Three Programmable Relay Outputs With Voltage
Three Zone Dependency Functions (A, B & C to EN54-2 Clause 7.12)
A Day/Night Function.
An Investigation Delay Period Function.
Individual Sensitivity Settings For Each Device
Powerful Short Circuit Protected Loop Drivers
An Integral EN54 Switch Mode PSU rated @ 185-260V a.c. 50/60Hz (3A on 32 zone panel, 1.4A on 16 zone panel)
Earth Fault Monitoring
12 Months Warranty
