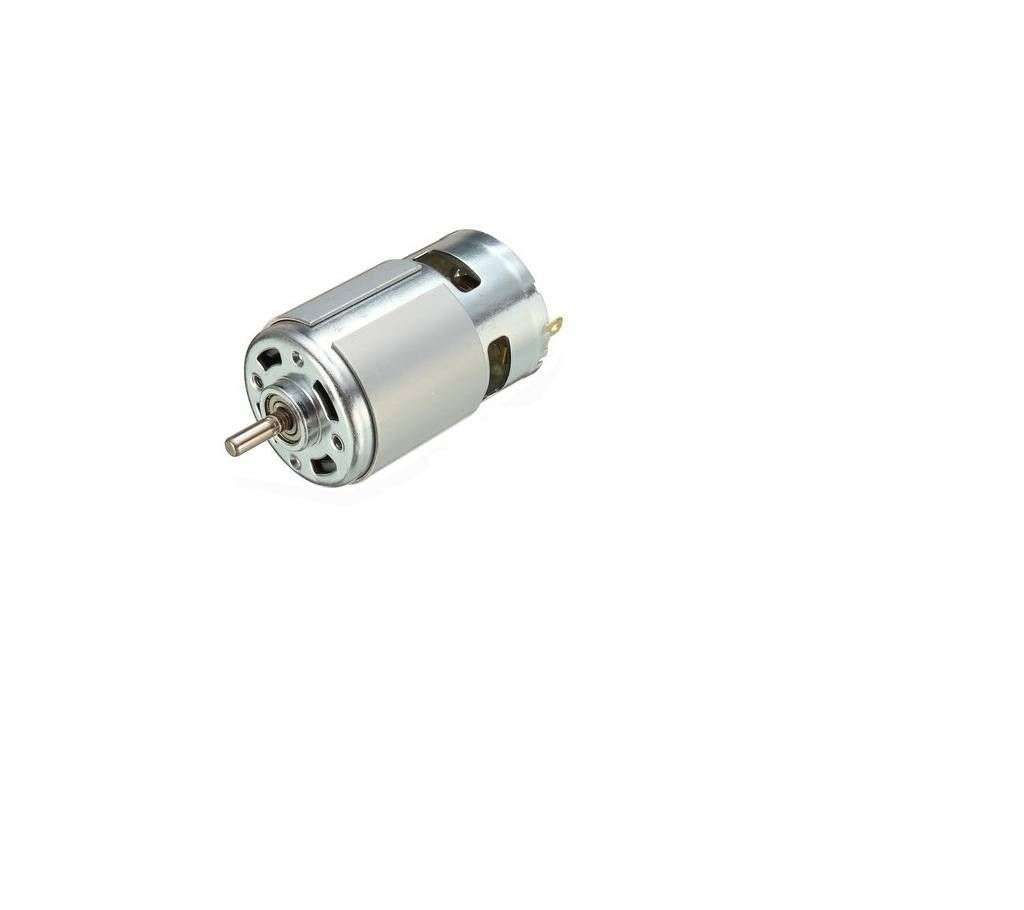

D775 DC 12V-36V 13000-21000 RPM Motor
D775 DC 12V-36V 13000-21000 RPM মোটর
Product Name: D775 Motor (DC 12V-36V 13000-19000 RPM High Torque & High Power Motor)
Model: 775
Shaft Diameter: 5mm
Shaft length: 17mm
Body length: 66.7mm
Front steps diameter: 17.4 mm
Former high level: 4.7 mm
Body diameter: 42 mm
Motor Overall Length: 98 mm
Diagonal installation pitch: 28.8 mm
Mounting hole size: M4
Mounting hole: 2 Torque: 2kg.cm or 0.2N.M
Power Supply: DC 12V 5A - 36V 3A
No load speed: 13000 RPM / 12v(rpm)
Rated output power 75W
