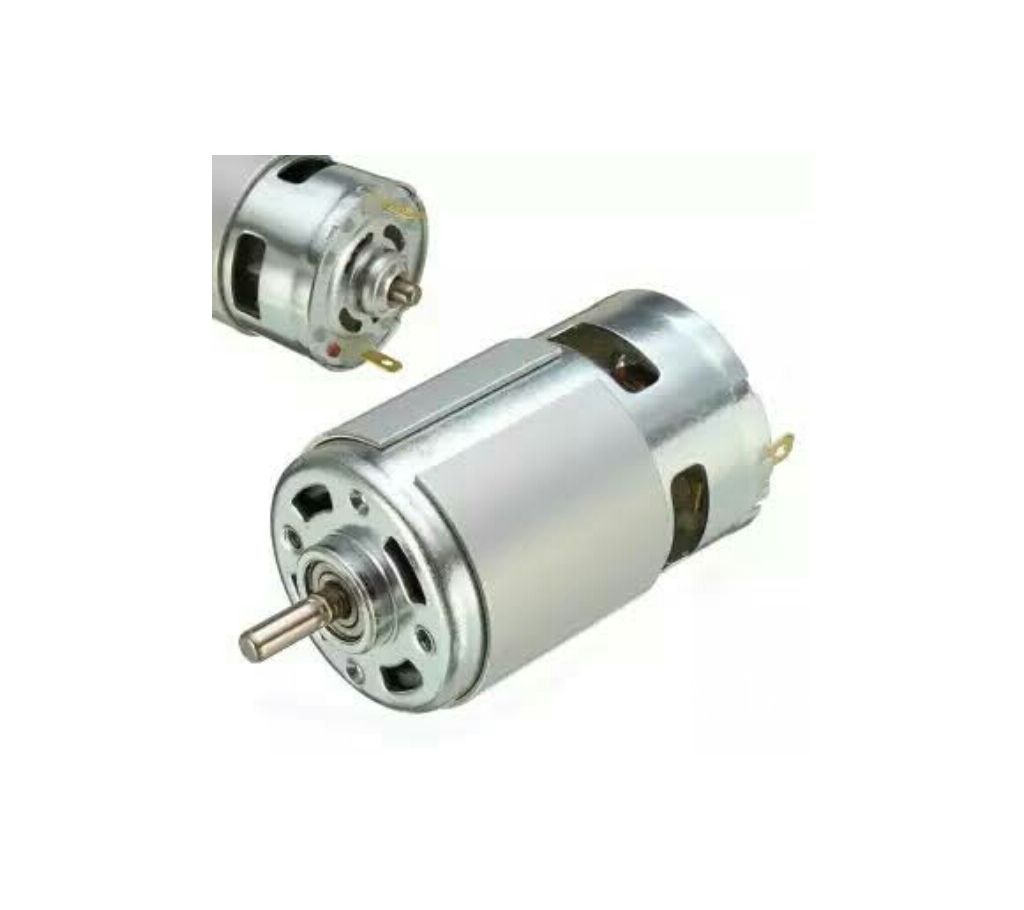

D775 Motor (DC 12V-36V 13000-19000 RPM High Torque & High Power Motor)
D775 মোটর (DC 12V-36V 13000-19000 RPM হাই টর্ক অ্যান্ড হাই পাওয়ার
Product Name: D775 Motor (DC 12V-36V 13000-19000 RPM High Torque & High Power Motor)
Model: 775
Shaft Diameter: 5mm
Shaft length: 17mm
Body length: 66.7mm
Front steps diameter: 17.4 mm
Former high level: 4.7 mm
Body diameter: 42 mm
Motor Overall Length: 98 mm
Diagonal installation pitch: 28.8 mm
Mounting hole size: M4
Mounting hole: 2
Torque: 2kg.cm or 0.2N.MNo
load speed: 5000 RPM / 12v(rpm) Rated output power 75W
DC motor is any of a class of rotary electrical machines that converts direct current electrical energy into mechanical energy. The most common types rely on the forces produced by magnetic fields. Nearly all types of DC motors have some internal mechanism, either electro-mechanical or electronic, to periodically change the direction of current flow in part of the motor. D775 Motor is High torque and high Energetic Motor is High quality diameter & low noise high torque Carbon brush motor /long shaft high power dc motor for Robotics, drill, Fan, Pump, Hss Cutter, Generator, etc.
