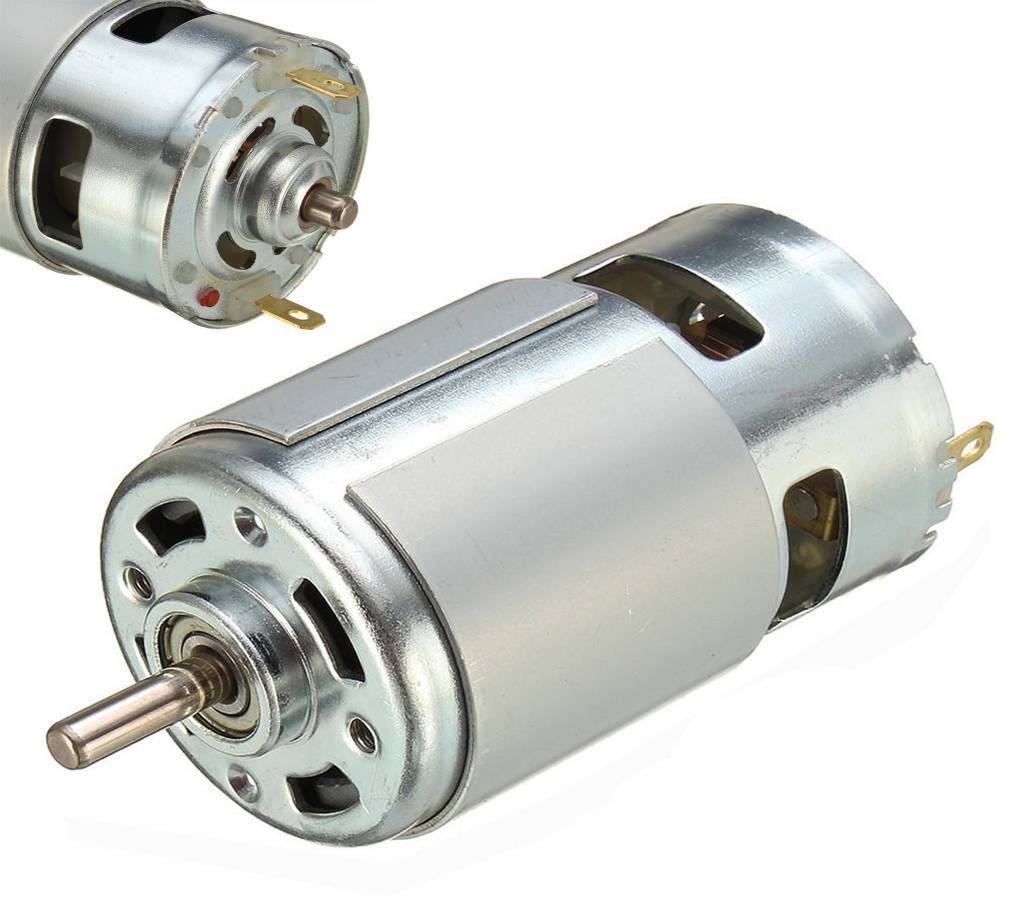

D'775 Motor (DC 12V-36V 13000-21000 RPM High Tark & High Power Motor
D'775 Motor (DC 12V-36V 13000-21000 RPM হাই টর্ক এন্ড হাই পাওয়ার মটর
Product Name: D775 Motor (DC 12V-36V 13000-21000 RPM High Torque & High Power Motor)
Model: 775 Shaft Diameter: 5mm Shaft length: 17mm Body length: 66.7mm Front steps diameter: 17.4 mm Former high level: 4.7 mm Body diameter: 42 mm Motor Overall Length: 98 mm Diagonal installation pitch: 28.8 mm
Mounting hole size: M4 Mounting hole: 2 Torque: 2kg.cm or 0.2N.M Power Supply: DC 12V 5A - 36V 3A No load speed: 13000 RPM / 12v(rpm) Rated output power 75W
